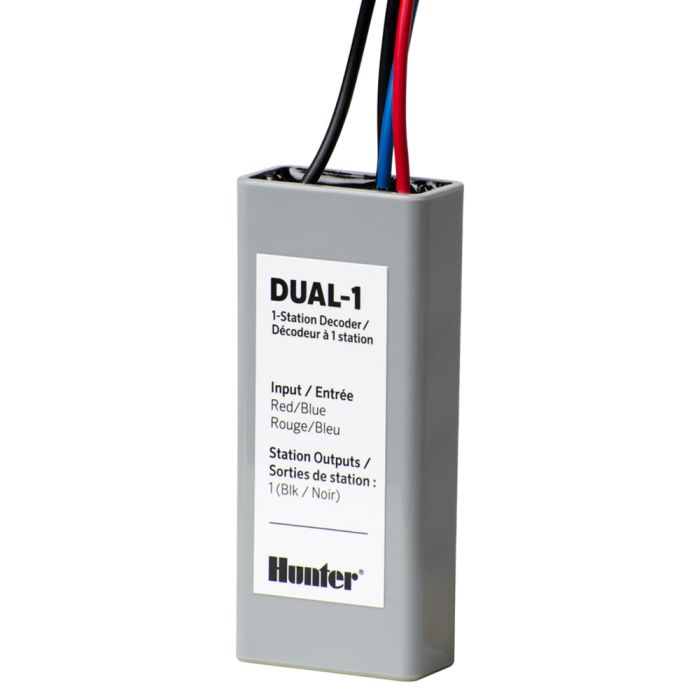

Hunter DUAL 1 Station Decoder | DUAL-1

• Station Expansion: 1
• Type: Decoder Expansion Module
• Controller Compatibility: I-CORE

Features & Benefits

DUAL is Hunters innovative two-wire plug-in for the I-Core controller. Designed to bring the convenience and efficiency of two-wire technology to all, the DUAL system can operate up to 48 zones via a single pair of wires, at distances up to 7,500 feet (2.3 km).

All 48 zones can be installed on a single path, or divided over multiple paths to take advantage of pipe trenches. Because it only requires two wires, DUAL offers unmatchable savings in labor, wire, and money.

Since its I-Core compatible, system operators still receive advanced features and benefits like flow monitoring, quick system overview access, a factory-installed SmartPort, six language capability, and a bold, graphic display. Dual decoders are available in one and two-station versions. Aptly named Dual-1 and Dual-2, the decoder choices ensure any I-Core Dual system is customizable to the needs of any installation.

Product Details

• Maximum recommended distance, decoder to solenoid: 100'
• Maximum distance to decoder via two-wire path:
  • 14 AWG wire path: 5,000'
  • 12 AWG wire path: 7,500'
• Approvals: UL, cUL, FCC, CE, RCM
• Decoder rating: IP68 submersible
• Warranty period: 5 years
