Features & Benefits

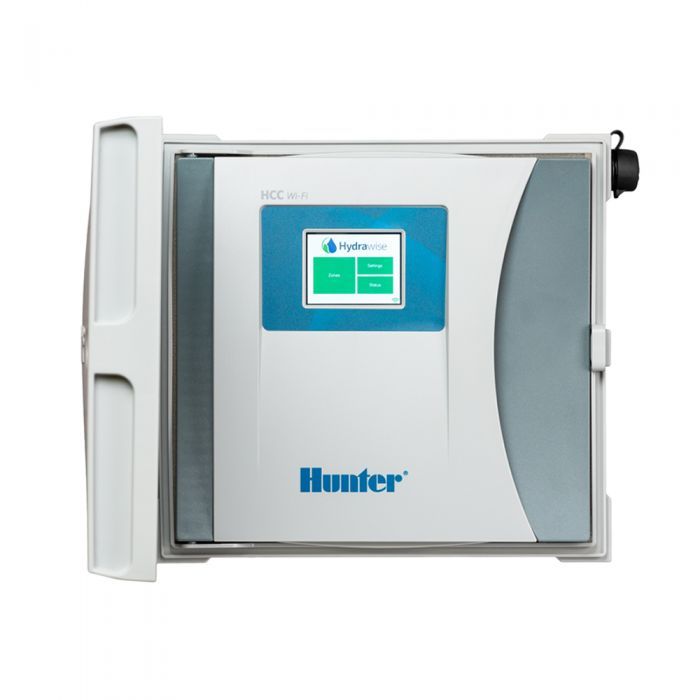

The next-generation HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawise platform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects - all with the simple click of a button.
The HCC combines robust features of the popular ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. HCC can control up to 54 zones and effectively operate any two stations simultaneously. The controller's convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the ICC2. Engineered with a prewired SmartPort, HCC is also compatible with Hunter's ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone.
With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes.
The number of stations:
Conventional: 8 to 38 (plastic), 8 to 54 (metal and pedestal)*
With two-wire EZDS: up to 54 (all enclosure options)
The standard programming option allows for 6 independent irrigation programs and 6 start times per program
Advanced programming option provides station-based programming with up to 6 total start times available
Any 2 programs or stations can operate simultaneously, providing more efficient watering
2 sensor inputs available for use with any Clik sensors and HC Flow Meter
1 P/MV output for pump start relay and master valve activation
Wi-Fi enabled for quick connection to Hydrawise software
31/4" full-color touchscreen display for simple programming at the control panel
Built-in milliamp sensor for wire fault detection and alerts
| Number | Description | Number | Description |
| 1 | Front Panel | 6 | Lock and Key Set |
| 2 | Ribbon Cable | 7 | Inner Door |
| 3 | Power Module | 8 | Transformer |
| 4 | Metal Front Door (w/ Lock) | 9 | Smart Port |
| 5 | Stainless Steel Front Door (w/ Lock) |
HYDRAWISE WI-FI COMPARISON CHART
| Controller Models | Maximum Stations | Sensor Inputs | Two-Wire | Remote Control | Web Access | Outdoor Lighting Control |
| HC | 12 | 2 | None | Smartphone with Wi-Fi | Hydrawise, Wi-Fi | PXSYNC |
| Wand for X2 | 14 | 1 | None | ROAM, ROAM XL, Smartphone with Wi-Fi | Hydrawise, Wi-Fi | PXSYNC |
| HPC | 16 | 1 | None | ROAM, ROAM XL, Smartphone with Wi-Fi | Hydrawise, Wi-Fi | PXSYNC |
| Pro-HC | 24 | 2 | None | Smartphone with Wi-Fi | Hydrawise, Wi-Fi | PXSYNC |
| HCC | 54 | 2 | EZDS, 54 stations | ROAM, ROAM XL, Smartphone with Wi-Fi | Hydrawise, Wi-Fi | PXSYNC |
Articles
Videos
| Brand | Hunter |
|---|---|
| Product Type | WiFi & Smart Controllers |
| Expandability | Modular |
| Power Source | AC Powered |
| Number of Programs | 6 |
| Start Times Per Program | 6 |
| Max Station Run Time (HRS) | 24 |
| Sensor Inputs | Yes |
| Outdoor | Yes |
| Sensor Compatible | Flow, Rain, Freeze, Solar |
| Rain Sensor Compatible | Yes |
| Solar Sensor Compatible | Yes |
| Freeze Sensor Compatible | Yes |
| Application | Residential|Light Commercial|Commercial |
| Warranty | 5 Years |
| Series | HCC |
| Zones | 8 |
| Enclosure Type | Indoor/Outdoor |
