Hunter I-25 Stainless Steel Rotor with Check Valve 6 in. | I25-06-SS

Name: Hunter I-25 Stainless Steel Rotor with Check Valve 6 in. | I25-06-SS
Brand: Hunter
SKU: I25-06-SS
Price: 66.1 USD
Availability: InStock

SKU

I25-06-SS

Sales Price $66.10 Our Price $122.92 You save 46%

Quantity of 12

$64.78 / each

Overview

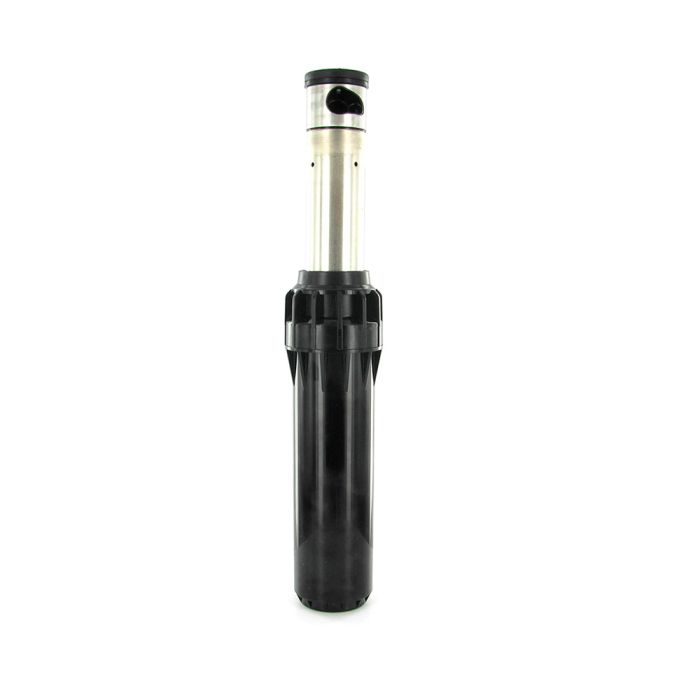

Hunter I-25 Stainless Steel Rotor with Check Valve 6"

Hunter I-25 Stainless Steel Rotor
With Check Valve
Pop-Up Height: 6 inches

Features & Benefits

The I-25 gets the job done with power, efficiency, and commercial-grade reliability. With a robust watering radius of 40' to 71', this rotor can be used in a variety of applications and environments. It's compact, highly durable design comes with an optional stainless steel riser for tough-as-nails strength. With a 5-year warranty, the I-25 also has options for reclaimed water ID and high-speed. A standard check valve is built-in, and a wide selection of high-performance nozzles are available. Efficient, tough, and built-to-last, Hunter's I-25 rotors work hard day in and day out so you don't have to.

Models: 6"
Models stainless riser: 4", 6"
Arc setting: 50 to 360 degrees
Factory installed rubber cover
Through-the-top arc adjustment
Quick check arc mechanism
Water lubricated gear-drive
Nozzle choices: 12
Nozzle range: #4 to #28
1 adjustment tool per order

Product Details

Radius: 37' to 71'
Flow rate: 3.8 to 31.5 GPM
Recommended pressure range: 40 to 100 PSI
Operating pressure range: 40 to 100 PSI
Precipitation rates: 0.4 in/hr approx.
Nozzle trajectory: 25 degrees
Overall Height: 10-1/4"
Pop-up Height: 6"
Exposed Diameter: 1-7/8"
Inlet Size: 1" female NPT

I-25 Standard Nozzle Performance Data

NOZZLE	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
04
	40	40	3.8	0.46	0.53
	50	41	4.3	0.49	0.57
	60	42	4.7	0.51	0.59
	70	43	5.1	0.53	0.61
05
	40	43	4.4	0.46	0.53
	50	44	4.8	0.48	0.55
	60	45	5.3	0.50	0.58
	70	46	5.6	0.51	0.59
07*
	40	45	6.6	0.63	0.72
	50	47	7.0	0.61	0.70
	60	48	7.5	0.63	0.72
	70	49	7.9	0.63	0.73
08
	40	47	7.7	0.67	0.77
	50	49	8.3	0.67	0.77
	60	50	9.2	0.71	0.82
	70	51	9.9	0.73	0.85
10*
	50	51	10.1	0.75	0.86
	60	52	11.1	0.79	0.91
	70	53	12.1	0.83	0.96
	80	54	12.9	0.85	0.98
13
	50	53	11.2	0.77	0.89
	60	54	12.3	0.81	0.94
	70	55	13.3	0.85	0.98
	80	55	14.3	0.91	1.05
15*
	50	56	13.4	0.82	0.95
	60	57	14.3	0.85	0.98
	70	57	15.2	0.90	1.04
	80	58	16.4	0.94	1.08
18
	50	58	14.5	0.83	0.96
	60	59	15.7	0.87	1.00
	70	62	16.9	0.85	0.98
	80	63	18.2	0.88	1.02
20*
	60	62	17.8	0.89	1.03
	70	63	19.2	0.93	1.08
	80	64	20.5	0.96	1.11
	90	65	21.8	0.99	1.15
23
	60	64	21.9	1.03	1.19
	70	65	23.6	1.08	1.24
	80	66	25.6	1.13	1.31
	90	67	27.0	1.16	1.34
25*
	60	66	23.5	1.04	1.20
	70	68	25.5	1.06	1.23
	80	69	28.0	1.13	1.31
	90	70	29.5	1.16	1.34
28
	70	68	26.9	1.12	1.29
	80	70	28.7	1.13	1.30
	90	71	30.6	1.17	1.35
	100	71	31.5	1.20	1.39
* 5 standard nozzles included with each sprinkler.
Note: All precipitation rates calculated for 180° operation. For the precipitation rate for a 360° sprinkler, divide by 2.

I-25 High Speed Nozzle Performance Data

NOZZLE	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
04
	40	37	3.8	0.53	0.62
	50	38	4.3	0.57	0.66
	60	38	4.7	0.63	0.72
	70	39	5.1	0.65	0.75
05
	40	38	4.4	0.59	0.68
	50	39	4.8	0.61	0.70
	60	40	5.3	0.64	0.74
	70	41	5.6	0.64	0.74
07*
	40	40	6.6	0.79	0.92
	50	41	7.0	0.80	0.93
	60	42	7.5	0.82	0.95
	70	44	7.9	0.79	0.91
08
	40	42	7.7	0.84	0.97
	50	43	8.3	0.86	1.00
	60	44	9.2	0.91	1.06
	70	45	9.9	0.94	1.09
10*
	50	6	0.1	0.92	1.06
	60	8	1.1	0.93	1.07
	70	9	2.1	0.97	1.12
	80	0	2.9	0.99	1.15
13
	50	8	1.2	0.94	1.08
	60	9	2.3	0.99	1.14
	70	1	3.3	0.98	1.14
	80	1	4.3	1.06	1.22
15*
	50	9	3.4	1.07	1.24
	60	1	4.3	1.06	1.22
	70	3	5.2	1.04	1.20
	80	4	6.4	1.08	1.25
18
	50	0	4.5	1.12	1.29
	60	3	5.7	1.08	1.24
	70	5	6.9	1.08	1.24
	80	7	8.2	1.08	1.25
20*
	60	3	7.8	1.22	1.41
	70	6	9.2	1.18	1.36
	80	8	0.5	1.17	1.35
	90	9	1.8	1.21	1.39
23
	60	6	1.9	1.34	1.55
	70	8	3.6	1.35	1.56
	80	0	5.6	1.37	1.58
	90	1	7.0	1.40	1.61
25*
	60	8	3.5	1.34	1.55
	70	2	5.5	1.28	1.47
	80	4	8.0	1.32	1.52
	90	6	9.5	1.30	1.51
28
	70	0	6.9	1.44	1.66
	80	2	8.7	1.44	1.66
	90	5	0.6	1.39	1.61
	100	7	1.5	1.35	1.56
* 5 standard nozzles included with each sprinkler.
Note: All precipitation rates calculated for 180° operation. For the precipitation rate for a 360° sprinkler, divide by 2.

Specs

More Information
Brand	Hunter
Product Type	Rotors
Application	Commercial
Body Height	10-1/4
Inlet Size	1 in.
Pressure Range (PSI)	40-100
Warranty	5 Years
Spray Pattern	Part Circle Adjustable (50 - 360)
Spray Radius	37 ft. - 71 ft.
Advanced Features	Check Valve
Series	I25
Pop-Up Height	6 in.
Riser Material	Stainless Steel
Check Valve	Check Valve
