Hunter I-Core 6 Station Outdoor Metal Controller | IC-600M

In stock
SKU
IC-600M
Free Shipping on Orders over $149
Sales Price $995.95 Our Price $1,244.94 You save 20%

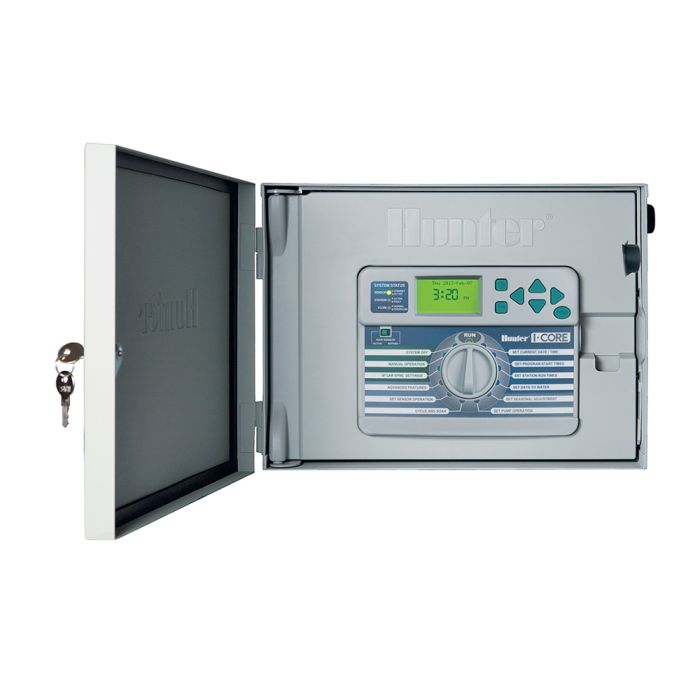

Hunter IC-600M I-Core 6 Station Controller Metal Cabinet

The IC-600 M is a 6-Station controller, indoor/outdoor, metal cabinet.

The I-Core is Hunter?s controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL? two-wire module and decoders can expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservationfocused Solar-Sync, I-Core?s possibilities are all but limitless.

When used with Solar Sync, the I-Core is certified by the EPA as a Watersense-approved controller?yet another reason why the I-Core stands alone as the commercial controller of choice.

Features & Benefits

  • IC-600-PL 6-Station controller, indoor/outdoor, plastic cabinet
  • IC-600-M 6-Station controller, indoor/outdoor, metal cabinet
  • IC-600-PP 6-Station controller, indoor/outdoor, plastic pedestal
  • Number of stations: 6 to 42 (48 stations with DUAL decoders)
  • Type: Modular
  • Enclosure: Outdoor, plastic or metal
  • Independent programs: 4
  • Start times per program: 8 (A, B, C); 16 (D)
  • Max. station run time: 12 hrs
  • Warranty period: 2 years

Specifications

  • Transformer input: 120/230 VAC, 50/60 Hz
  • Transformer output (24 VAC): 1.4 A
  • Dual voltage transformer (120/240 VAC)
  • Station output (24 VAC): 0.56 A
  • Simultaneous program operation: 2
  • Pump/Master Valve (24 VAC): 0.28 A
  • Sensor inputs: Plastic: 2; Metal: 3
  • Operating temperature: 0? F to 140? F

Approvals

  • CE, UL, cUL, C-tick, FCC
  • Enclosure rating: Steel wall mounts: IP-56
  • Plastic pedestal: IP-24
  • Plastic wall-mount: IP-44

Enclosure Rating

  • Steel wall mount: IP-56
  • Plastic pedestal: IP-24
  • Plastic wall mount: IP-44
  • Advanced Feature description
More Information
Brand Hunter
Expandability Modular
Power Source AC Powered
Number of Programs 4
Start Times Per Program 8 or 16
Max Station Run Time (HRS) 12
Sensor Inputs 3
Indoor Yes
Outdoor Yes
Sensor Compatible Flow, Rain, Freeze, Solar
Rain Sensor Compatible Yes
Solar Sensor Compatible Yes
Freeze Sensor Compatible Yes
Application Residential|Light Commercial|Commercial
Warranty 2 Years
Series I-Core
Zones 6
Enclosure Type Indoor/Outdoor
Parts (945.62 kB)
