Hunter I-Core, ACC, & ACC2 Metal Pedestal | ACC-PED

SKU

ACC-PED

Sales Price $536.02 Our Price $925.93 You save 42%

Note: Item does not qualify for Priority Processing. Please anticipate a delay in shipment.

Overview

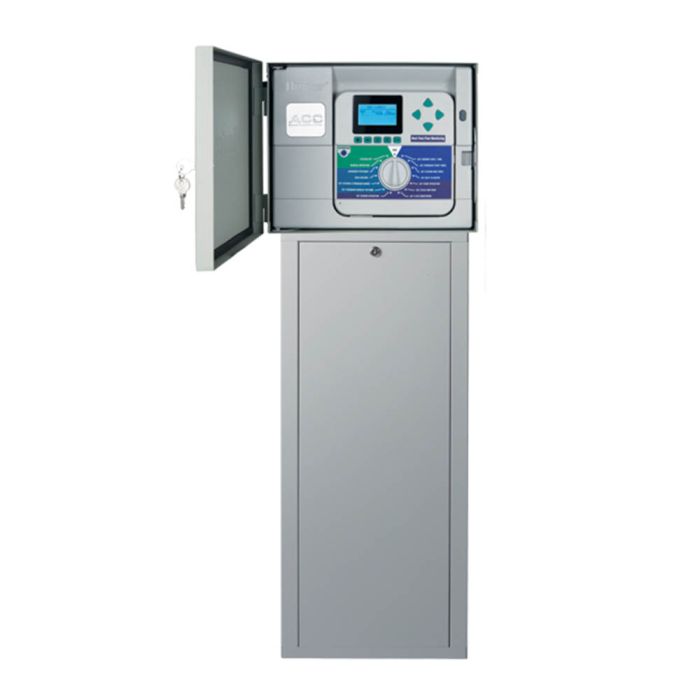

Hunter ACC-PED Plastic Pedestal for I-Core and ACC Controllers

The ACC brings the versatile features of modularity to the most advanced large-scale commercial controller in the Hunter line. The adaptable design not only allows configuration to the number of stations you desire, it also makes it easy to upgrade to two-way communication with a Hunter Central Control System. What truly sets the ACC apart is its sheer power. Intelligent overlap settings and its powerful transformer allow ACC to run up to 6 programs simultaneously, packing the most watering into the shortest water window. Real time flow monitoring allows the controller to dynamically respond to overflow conditions by station, and track system water use. The ACC boasts a total of 6 independent and 4 custom programs and the ability to assist the water manager in conforming to "watering windows." Plus, the ACC's large backlit LCD display offers the user a convenient means to personalize on-screen station and program names. ACC also has built-in support for the water-saving Solar Sync sensor.

Features & Benefits

Transformer input: 120 VAC, 2 A max (1.5 A, typical) 230 VAC, 1 A max (0.7 A, typical)
Transformer output: 24 VAC, 4 A
Station output: 24 VAC, 0.56 A (2 valves)
Maximum total output: 24 VAC, 4 A
Two master valve outputs: 24 VAC, 0.325 A each
Rain sensor override compatible with most brands utilizing a normally closed micro switch
Seasonal adjustment: 0 to 300% in 1% increments
All programs can run simultaneously or stack, selectable
Self-diagnostic overload protection: skips shorted stations and continues watering
Station run times: up to 6 hours
Programmable delay between stations of up to 6 hours
Programmable rain delay up to 31 days
UL listed, CE, C-tick
365 day calendar (including leap year)
Test program feature allows for quick system checks
SmartPort
Central control compatible with Hunter IMMS system
Upgrade to ET capability
Solar Sync compatible

Electrical Specifications

Transformer input: 120/240 VAC, 50/60 Hz
Max AC Current Draw: 120 VAC, 2 Amps; 230 VAC, 1 Amp (max computed with all programs running and optional accessories installed)
Transformer output (24 VAC): 4.0 A
Dual voltage transformer (120/240 VAC)
Station output (24 VAC): 0.56 A
P/MV output (24 VAC): 0.32 A
Pump/master valve: 2, normally closed
Sensor inputs: 4 + Flow

Approvals
