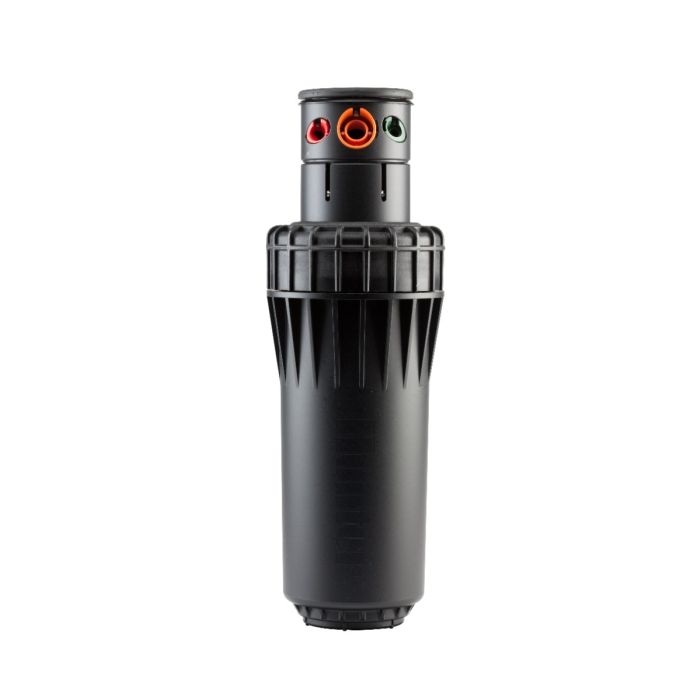

The I-90 is Hunter's longest distance rotor specifically designed for natural turf, parks, sports fields, and public areas. With a radius of up to 101 feet, the I-90 boasts the longest throw capability of all natural turf rotors. Yet, its reduced-size diameter and cushioned rubber cover make it the perfect choice for parks and wide-open lawn areas, as well as perimeter watering of athletic fields and horse arenas.
The rotor is also easy to service, with a jar-top body cap that allows quick access to the filter screen and check valve with no extra pieces, parts, or tools required. The I-90 is offered in two models: a full-circle opposing-nozzle version or an adjustable arc model, each with color-coded nozzles that can be field-changed to match the specific needs of any large site.
I-90 Dual Trajectory Color-Coded Nozzles
All I-90 Series rotors have color-coded nozzles for easy identification and, the nozzle numbers approximate the flow in gallons per minute. Choose from the eight standard 22.5-degree trajectory nozzles or the eight 15 degree nozzles for low-angle applications.
Standard 22.5 degree trajectory nozzles
Low-angle 15 degree trajectory nozzles
I-90 Drain Check Valve (Up to 7 ft. elevation)
As the air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.
| Brand | Hunter |
|---|---|
| Product Type | Rotors |
| Application | Commercial |
| Body Height | 11 |
| Inlet Size | 1-1/2 in. |
| Pressure Range (PSI) | 70-120 |
| Warranty | 5 Years |
| Spray Pattern | Adjustable Arc |
| Spray Radius | 63 ft. - 101 ft. |
| Advanced Features | Check Valve |
| Pop-Up Height | 3 in. |
| Check Valve | Check Valve |
