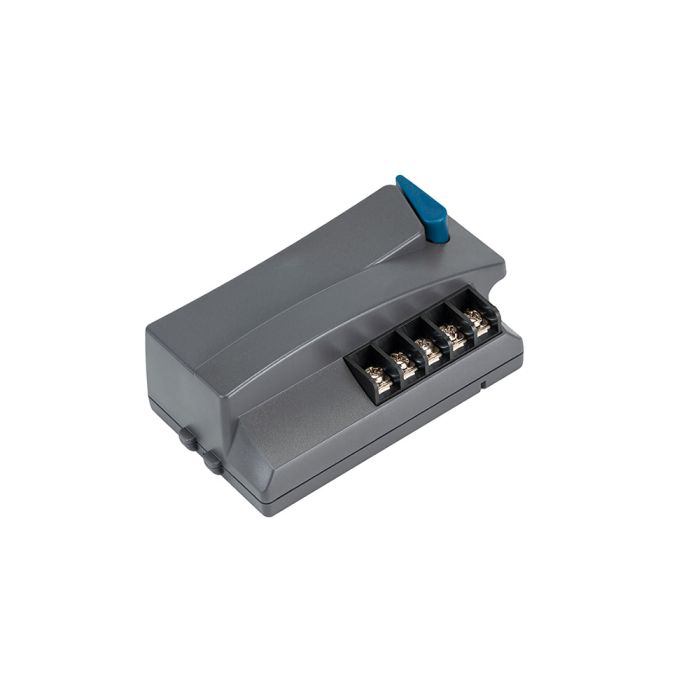

Hunter ICC 4 Station Expansion Module | ICM-400

Features / Benefits

• Versatile modular design Simplified inventory management; easily customize unit to desired number of stations U.S. Patent #'s 6,840,460 & 6,842,667
• Large LCD display for simplified programming Easy to read for schedule review and entry
• Three programs (A ,B, C) with multiple start times Independent programming handles many different watering requirements
• Choice of independent day scheduling options Days of the week, odd/even or 31-day interval for maximum flexibility
• Global water budget/seasonal adjustment Easily change run time of all zones from 10% to 150%
• Non-volatile memory Holds programs indefinitely; excellent insurance against unreliable power
• Superior surge protection and self-diagnostic short circuit protection Microcircuits are protected from electrical spikes, no fuses to worry about
• Remote control ready Supplied with connection for SRR and ICR remote controls
• These enhanced station output modules expand both old and new versions of ICC, and include additional surge suppression, in increments of 4, 8 or 22 stations.

Specifications

• Transformer input: 120/240VAC, 50/60Hz
• Transformer output: 24VAC, 1.5A
• Station output: 24VAC, 0.56A (2 valves)
• Maximum total output: 24VAC, 1.4A (5 valves), includes master valve circuit
• Master valve output: 24VAC, 0.28A
• Rain sensor override compatible with most brands utilizing a normally closed micro switch
• Seasonal adjustment: 10 to 150% Program "D" can run simultaneously with Program A, B, or C for drip
• Self-diagnostic circuit breaker: Skips shorted stations and continues watering, no fuses to replace
• Station run times: Programs A, B, and C, 2 hours; Program D, 12 hours
• Programmable delay between stations up to 10 hours
• Programmable rain delay up to 7 days
• UL listed
• 365 day calendar
• Hunter Quick Check helps troubleshoot field wiring problems
• Test program feature allows for quick system checks
• Central control compatible with Hunter IMMS system
• Compatible with Hunter's SRR and ICR remote control systems
• All models NEMA 3R rated for weather resistance
• One button manual start and advance
• Cycle and Soak capability by station

Dimensions

• Metal Cabinet: 16" H x 12 1/4" W x 4 3/4" D (40.6 cm H x 31.1 cm W x 12.1 cm D)
• Metal Pedestal: 30" H x 11 3/8" W x 4" D (76.2 cm H x 28.9 cm W x 10.2 cm D)
• Plastic Pedestal: 38 3/16" H x 20 1/2" W x 15 1/8" D (97 cm H x 52 cm W x 38 cm D)

Modules: designed to make everything easier

It's designed to fit virtually any residential or light commercial need. It's designed for flexibility right at the job site. It's designed to keep an installer's inventory to a minimum. What is it? It's the modular design of the new Hunter Pro-C irrigation controller. Beginning with a 3-station base unit, the Pro-C can be expanded with up to three more 3-station modules. Thus, a contractor no longer needs to stock eight different types of sprinkler controllers (3-, 6-, 9- and 12-station units in both indoor and outdoor models) he simply needs to keep on hand just three items (indoor and outdoor Pro-C base units and 3-station modules).

Non-volatile Memory: Your Insurance against unreliable power

Operating an electronic sprinkler controller has always required the use of a battery to ensure the retention of the unit's program information, right? Not when your sprinkler controller is a Hunter sprinkler controller. In the event of a power failure or if AC power is suspended from the sprinkler controller by the user, Hunter's non-volatile memory will maintain program information forever, without the need for a battery. The unit's normal watering will resume when AC power is restored. Non-volatile memory is standard on every Hunter Irrigation Controller and it's the ideal feature for areas prone to lightning strikes or rolling blackouts.
