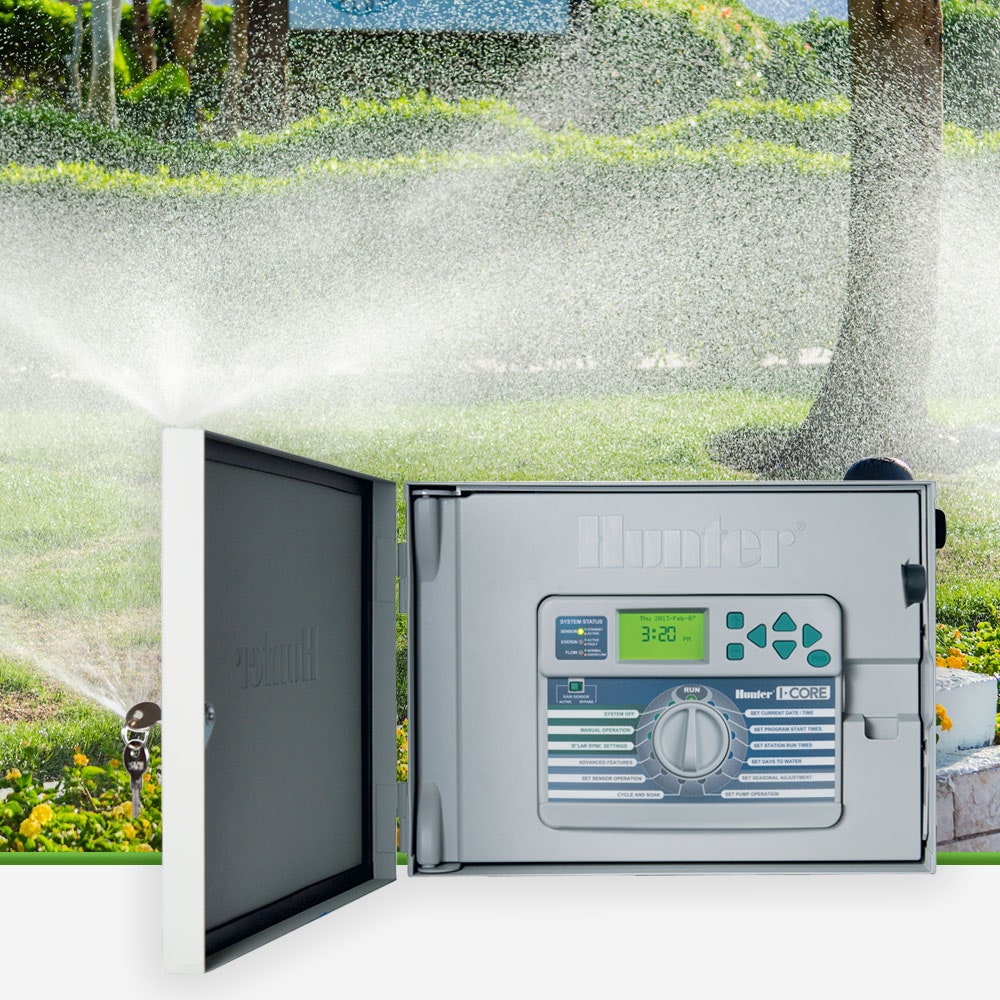

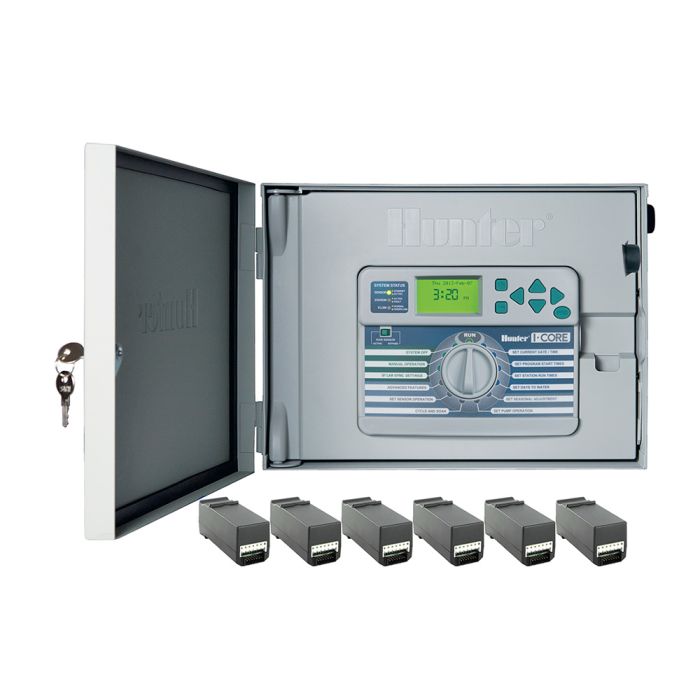

The I-Core is Hunter's controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL® two-wire module can even expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation-focused Solar-Sync®, I-Core's possibilities are all but limitless.
By adding a Solar Sync to your Hunter controller, it transforms into a smart controller using local weather conditions to tailor watering schedules to actual conditions on the site. A Hunter controller with Solar Sync has been independently proven to have a detailed list of water saving features and has been approved by the EPA as a WaterSense Smart Watering Controller.
This feature permits connection of a flow meter to recognize high or low flow conditions and react automatically to alarms. The controller learns typical flows for each zone of irrigation and then monitors performance during automatic irrigation. When incorrect flows are detected, the controller can identify the faulty station and shut it down. Alarm parameters are user-programmable. Flow totals are recorded in controller memory to report system water usage.
A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.
Allows any program to be started manually by simply pressing and holding the right arrow key. Advance through stations in a program by pressing the right arrow key again.
The Programmable Rain Delay feature incorporates a user-specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather but will resume watering automatically without requiring a return visit to the controller. The controller displays the number of days remaining before watering resumes.
Brand | Hunter |
---|---|
Expandability | Modular |
Power Source | AC Powered |
Number of Programs | 4 |
Start Times Per Program | 8 or 16 |
Max Station Run Time (HRS) | 12 |
Sensor Inputs | 3 |
Outdoor | Yes |
Sensor Compatible | Flow, Rain, Freeze, Solar |
Rain Sensor Compatible | Yes |
Solar Sensor Compatible | Yes |
Freeze Sensor Compatible | Yes |
Application | Residential|Light Commercial|Commercial |
Warranty | 2 Years |
Series | I-Core |
Zones | 42 |
Enclosure Type | Outdoor |
