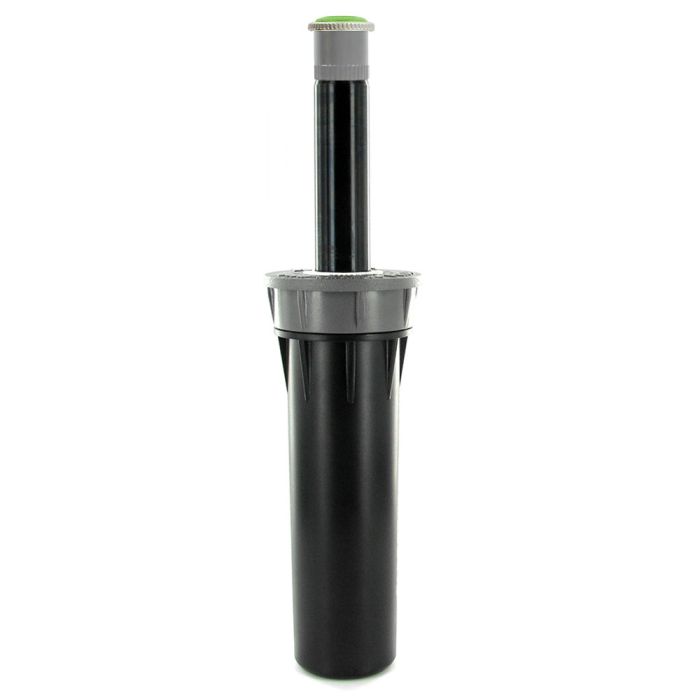

Hunter MP815-360 Rotator and Body Bundle | PROS-04-PRS40CV-MP815360

• Pop-Up Height: 4 in.
• Nozzle Installed: MP815-360
• Potable, PRS40
• With Check Valve
• No MPTool Included

Features & Benefits

The ability to regulate water pressure is crucial to overall system efficiency. The gray-capped PRS40 takes all the rugged and reliable features of the Pro-Spray body and delivers efficient pressure regulation by keeping water pressure at a constant 40PSI.

The built-in regulator is proven to reduce water waste and promote healthier root zones, because water is delivered at the optimum pressure for spray nozzles. The PRS40 is compatible with both fixed-arc and Precision Distribution Control Adjustable Nozzles, and is available in Shrub, 4", 6" and 12" riser heights. It is recommended for both residential and commercial applications.

Water small spaces more efficiently with a new series of MP Rotators designed for distances from 6' to 12'. The SR series offers the benefits of multi-stream multi-trajectory (MSMT) technology in areas smaller than ever before possible. The new MP800SR provides wind-resistant streams, high distribution uniformity, double-pop nozzle protector, and extreme resilience to dirt and debris.

Realize water savings for tight spaces. The MP800SR delivers water at a low application rate of 0.8 in/hr, less than half that of traditional spray nozzles.

• Pressure regulated at 40 PSI
• Identification cap is gray for easy field ID
• Co-Molded Wiper Seal with UV resistant material
• Compatible with all female threaded nozzles
• The MP Rotator has the unique ability to control the amount of water flowing through the nozzle at various arc and radius settings, resulting in matched precipitation regardless of the nozzle setting.
• The MP Rotator's nozzle pops up from its protected position only after the riser is fully extended, providing superior defense against dirt and debris.

• The various streams of the MP Rotator allow it to target all areas of the landscape evenly, yielding superior uniformity over traditional spray nozzles. Each stream targets specific areas to achieve higher efficiency and even coverage.
• The standard MP Rotator line applies water at 0.4 in/hr, while the SR Series has a precipitation rate of 0.8 in/hr. Either choice will avoid runoff, saving water and preventing erosion.
• Removable filter screen ensures hassle-free service
• Low precipitation rate
• Wind-resistant multi-stream technology
• Adjustable arc and radius

Product Details

Operating Range

• Recommended pressure range: 15 to 100 PSI
• Recommended operating pressure: 40 PSI
• For spaces less than 8', 30 PSI operating pressure is necessary
• Recommended to use with clean water
• MP800SR-90 uses a 60 mesh built-in nozzle filter
• MP800SR-360 & MP815 uses a 40 mesh built-in nozzle filter
• Recommended: Use 150 mesh pre-filter arrangement
• Hunter ACZ, PCZ, or ICZ drip filters are a great solution for zone-specific MP800SR arrangements

Dimensions

• Overall Height: 5-7/8"
• Pop-up Height: 4"
• Exposed Diameter: 2-1/4"
• Inlet Size: 1/2" female NPT
• 8' to 16' radius, 360°
