Hunter PGP ULTRA Rotor with Check Valve 12 in. | PGP-12CV

SKU
PGP-12CV

*XX-Large are an additional $1.00

Sales Price $29.95 Our Price $57.99 You save 48%
Quantity of 12
$28.95 / each

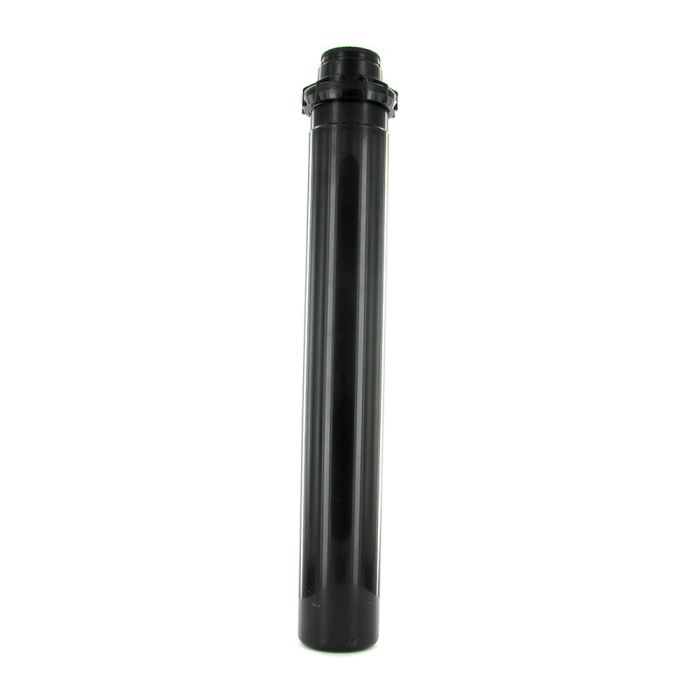

Hunter PGP ULTRA Rotor with Check Valve 12"

Overview

  • Hunter PGP ULTRA Rotor
  • With Check Valve
  • Pop-Up Height: 12 inches

Features & Benefits

The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra are its non-strippable gear drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

  • Models: Shrub
  • Arc setting: 50 to 360 degrees
  • Factory installed rubber cover
  • Through-the-top arc adjustment
  • Quick check arc mechanism
  • Water lubricated gear-drive
  • Includes: set of 12 nozzles (8 standard and 4 low angles), 1 adjustment tool per order.

Product Details

  • Radius: 17' to 47'
  • Flow rate: 0.36 to 14.8 GPM
  • Recommended pressure range: 25 to 70 PSI
  • Operating pressure range: 20 to 100 PSI
  • Precipitation rates: 0.4 in/hr approx.
  • Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees
  • Overall Height: 17"
  • Pop-up Height: 12"
  • Exposed Diameter: 1-3/4"
  • Inlet Size: 3/4" female NPT



More Information
Brand Hunter
Product Type Rotors
Application Residential And Commercial
Body Height 17
Inlet Size 3/4 in.
Pressure Range (PSI) 25-70
Warranty 5 Years
Spray Pattern Part Circle Adjustable (50 - 360)
Spray Radius 17 ft. - 47 ft.
Advanced Features Check Valve
Series PGP Ultra
Pop-Up Height 12 in.
Riser Material Plastic
Check Valve Check Valve
File Icon Brochure (226.07 kB)
File Icon Manual (671.61 kB)
File Icon Specifications (380.73 kB)
