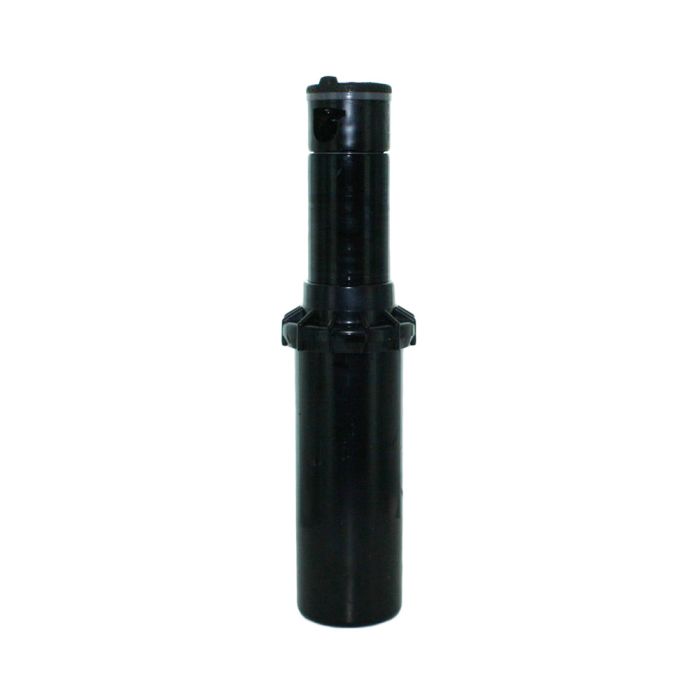

Hunter PGP ULTRA Rotor with Check Valve 4 in. | PGP-04CV

Overview

• Hunter PGP ULTRA Rotor
• With Check Valve
• Pop-Up Height: 4 inches

Features & Benefits

The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

• Models: Shrub
• Arc setting: 50 to 360 degrees
• Factory installed rubber cover
• Through-the-top arc adjustment
• Quick check arc mechanism
• Water lubricated gear-drive
• Includes: a set of 12 nozzles (8 standard and 4 low angles), 1 adjustment tool per order.
• Radius: 17' to 47'
• Flow rate: 0.36 to 14.8 GPM
• Recommended pressure range: 25 to 70 PSI
• Operating pressure range: 20 to 100 PSI
• Precipitation rates: 0.4 in/hr approx.
• Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees
• Overall Height: 7-1/2"
• Pop-up height: 4"
• Exposed Diameter: 1-3/4"
• Inlet Size: 3/4" female NPT

Product Details

Installing the PGP Riser Seal
Removing the old seal:

• Unscrew the body cap and remove the internal assembly.
• Place the base of the riser on a solid surface and grip the spring and riser body firmly.
• With your other hand, snap off the body cap. With your palm on top of the logo cap, pull up with your fingers.
• While still gripping the spring and body, remove the rubber seal. When you remove the seal, the tension in the spring will be released.
• Remove the plastic spring seat.

Installing the new seal:

• With the base of the riser on a solid surface, push the retraction spring down below the nozzle turret and hold it there.
• Drop the rigid-plastic spring seat onto the riser, grooved side down, so it rests on the spring.
• Carefully work the new flexible rubber seal, flat side up, onto the nozzle turret, and then down onto the riser body. Take special care not to twist or deform the flexible seal as you work it down over the gap between the nozzle turret and riser shaft.
• Snap the body cap onto the body. The cap will slide down freely once past the ring at the top of the nozzle turret.
• Carefully release your grip on the spring.
• Exercise the assembly several times (push the cap down and let it be pushed back up) to ensure the parts are seated and do not stick.
• Reinstall the assembly in the sprinkler body, screwing the cap on tightly with your hand. Be sure no threads can be felt under the body cap—if you can feel the threads, the seal is not seated properly.

Note: The new riser seal incorporates improvements that increase the durability and life of service. Before turning on the sprinkler to check for leaks, necessary adjustments, and proper retraction, you should check the final installation height to determine if the sprinkler is set at grade.

Related Articles & Videos

Articles

• How To Adjust A Hunter Rotor Head
• The Different Types And Uses Of Sprays, Rotors, And Impact Sprinklers
• Recommended Rotors from Sprinkler Warehouse
• A Guide To Annual Rotor Maintenance
• How To Add A Rotor Or Spray Head To A Zone

Videos

• Changing A Hunter PGP-ADJ Nozzle
• Choosing A Rotor
• Replacing A Rotor
• Q&A Sprays & Rotors

Hunter Nozzle Height and Trajectory Chart

MODEL	NOZZLE NO.	PRESSURE IN PSI	DEGREES OF TRAJECTORY - (A)	MAX HEIGHT OF SPRAY (FT.) - (B)	DISTANCE FROM HEAD (FT.) TO MAXIMUM HEIGHT - (C)
PGP Ultra Blue
	1	50	26	7'	22'
	2	50	26	7'	22'
	3	50	26	8'	23'
	4	50	26	8'	23'
	5	50	27	9'	26'
	6	50	27	10'	28'
	7	50	26	11'	30'
	8	50	26	11'	30'
	9	50	27	12'	32'
	10	60	25	13'	32'
	11	60	25	13'	38'
	12	60	25	13'	40'
MODEL	NOZZLE NO.	PRESSURE IN PSI	DEGREES OF TRAJECTORY - (A)	MAX HEIGHT OF SPRAY (FT.) - (B)	DISTANCE FROM HEAD (FT.) TO MAXIMUM HEIGHT - (C)
PGP Ultra Low Angle
	4	50	15	5'	22'
	5	50	15	4'	22'
	6	50	14	4'	22'
	7	50	14	4'	22'
	8	50	14	5'	24'
	9	50	15	5'	26'
	10	60	15	6'	0'
MODEL	NOZZLE NO.	PRESSURE IN PSI	DEGREES OF TRAJECTORY - (A)	MAX HEIGHT OF SPRAY (FT.) - (B)	DISTANCE FROM HEAD (FT.) TO MAXIMUM HEIGHT - (C)
PGP Ultra Short Radius
	1.5	45	25	8'	23'
	2.0	45	25	8'	23'
	2.5	45	25	9'	26'
	3.0	45	25	10'	28'
	4.0	45	25	11'	30'
	5.0	45	25	11'	30'
	6.0	55	25	12'	32'
	8.0	55	25	13'	32'
MODEL	NOZZLE NO.	PRESSURE IN PSI	DEGREES OF TRAJECTORY - (A)	MAX HEIGHT OF SPRAY (FT.) - (B)	DISTANCE FROM HEAD (FT.) TO MAXIMUM HEIGHT - (C)
PGP Ultra Blue
	1.5	45	25	8'	23'
	2.0	45	25	8'	23'
	2.5	45	25	9'	26'
	3.0	45	25	10'	28'
	4.0	45	25	11'	30'
	5.0	45	25	11'	30'
	6.0	55	25	12'	32'
	8.0	55	25	13'	32'
PGP Ultra Low Angle
	2.0LA	50	13	5'	22'
	2.5LA	50	13	4'	22'
	3.5LA	50	13	4'	22'
	4.5LA	50	13	4'	22'
PGP Ultra Short Radius
	0.5	50	15	5'	8'
	1.0	50	14	6'	9'
	2.0	50	3	1'	6'
PGP Ultra Short Radius
	0.75	50	22	7'	13'
	1.50	50	18	7'	13'
	3.00	50	8	1'	6'
