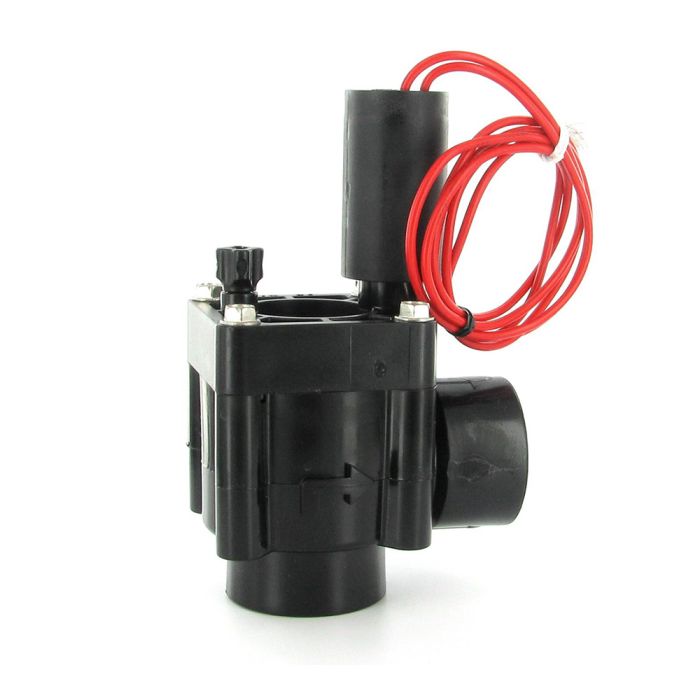

Hunter PGV Angle Valve 1 in. FPT | PGV-100A

In stock
SKU
PGV-100A
Free Shipping on Orders over $149
Sales Price $14.95 Our Price $44.55 You save 66%
Case of 20
$14.65 / each

Hunter PGV Angle Valve 1 in. FPT

  • Size: 1 in.
  • Valve Type: Angle
  • Connection: Female Pipe Thread

Features & Benefits

  • The Hunter PGV Valve is a professional grade line of valves that are built to work with a broad range of landscaping demands.
  • This irrigation valve is considered a diligent, rugged and mighty addition to any sprinkler and irrigation system.
  • The Hunter PGV-Series Valve offers features such as a rigid diaphragm support, flow control, and high-grade construction to prevent stress failure.
  • This top-of-the-line valve has an internal manual bleed as well as dependable Hunter solenoid for long life and operation.
  • Heavy-duty Hunter solenoid Provides dependable operation and long life
  • High grade construction, 150 PSI rating Made of durable materials to resist wear
  • Internal manual bleed Easy to use and keeps valve box dry All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
  • Rigid diaphragm support Works to prevent stress failure in tough conditions
  • Globe and angle configurations Easy to use in any application
  • Captive bonnet bolts and solenoid plunger No lost parts during servicing
  • Accu-Set pressure regulator compatible Dial setting pressure regulation for precise system control

Product Details

  • Flow: .2 to 120 GPM (0.04 to 27.2 m3/hr; 0.7 to 454.2 l/min)
  • Pressure: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
  • Heavy-duty solenoid: 24VAC; 370mA inrush current; 190mA holding current; 60 cycles; 475mA inrush current; 230mA holding current; 50 cycles
  • 1" Globe and Male x Male: 5" H x 4 1/2" L x 2 1/2" W (13 cm H x 11 cm L x 6 cm W)
  • 1" Male x Barb: 5" H x 5 1/2" L x 2 1/2" W (13 cm H x 14 cm L x 6 cm W)
  • 1" Angle: 5 1/2" H x 3 1/2" L x 2 3/4" W (14 cm H x 9 cm L x 7 cm W)
  • 1" Globe/Angle: 7 1/2" H x 5 3/4" L x 4 1/2" W (19 cm H x 15 cm L x 11 cm W)
  • 2" Globe/Angle: 8" H x 6 3/4" L x 5 1/4" W (20 cm H x 17 cm L x 13 cm W)

Replacement Parts

Number  Part Number  Part
1 Solenoid Assembly 7 Bonnet without Flow Control Bleed Screw
2 O-Ring 8 Diaphragm Spring
3 Solenoid Seal 9 Diaphragm Assembly
4 Bonnet Screw 10 Diaphragm Support Ring
5 Bleed Screw 11 Flow Control Handle
6 Bonnet with Flow Control & Bleed Screw 12 Purple Reclaimed ID Tag (10-PacK)
Brand:
Hunter
Type:
Valve
Body Material:
Plastic
Application:
Residential
Solenoid:
Yes
Size:
1 in.
Connection:
FPT
Flow Control:
No Flow Control
Valve Type:
Angle
Specifications (325.75 kB)
