Hunter PGV Jar Top Valve 1 in. MPT | PGV-100JT-MM

In stock
SKU
PGV-100JT-MM
Free Shipping on Orders over $149
Sales Price $13.85 Our Price $29.93 You save 54%
Case of 20
$13.57 / each

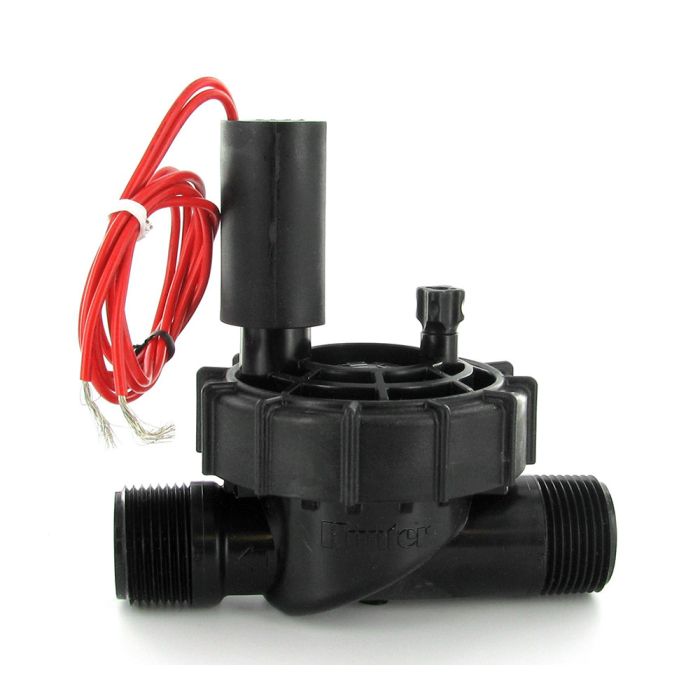

Hunter PGV-100JT-MM 1 in. MPT x MPT Jar-Top Valve without Flow Control

The Hunter PGV Jar-Top Residential Irrigation Valve offers convenience to the max, ease of service, and simplicity - An all-in-one package!

This unique valve combines Hunter's innovative technology and versatility when it comes to installing and maintaining the unit. The Hunter PGV Jar-Top Valve can handle the most demanding of situations with it's PVC construction and leak-proof diaphragm. Not to mention the many different installation and configuration styles the Hunter PGV Jar-Top Valve has to offer. The performance quality of the Hunter PGV residential valve is durable, reliable and also versatile. It gets the job done!

Dimensions

  • 1" Globe: 5 1/2" H x 4 3/4" L x 3 1/4" W
  • 1" Male x Male: 5 1/2" H x 5 1/4" L x 3 1/4" W
  • 1" Male x Barb: 5 1/2" H x 5 7/8" L x 3 1/4" W
  • 1" Male x 1 1/4" Barb: 5 1/2" H x 5 7/8" L x 3 1/4" W

Hunter PGV Jar-Top Series Valves - Pressure Loss Chart (PSI)

Features & Benefits

  • Jar-Top Bonnet Intuitive design makes it easy to access the valve; no tools necessary
  • Fully-encapsulated Hunter Solenoid Provides dependable operation and long life
  • Internal manual bleed Easy to use and keeps valve box dry All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
  • Flow control option Adjusts the flow of each zone on a system to deliver optimum nozzle performance
  • Rigid diaphragm support Works to prevent stress failure in tough conditions
  • Common Parts to Other Hunter Valves Diaphragm is interchangeable with PGV, SRV and PGV-ASV series 1" valves; solenoid fits all Hunter plastic valves
  • Wide Variety of Body Styles Easy installation for all types of connections

Specifications

  • Low: .2 to 30 GPM (0.04 to 6.81 m3/hr; 0.7 to 113.5 l/min)
  • Pressure: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
  • Ambient temperature: up to 150F (66C)
  • Heavy-duty solenoid: 24VAC, 370mA inrush current, 190mA holding current, 60 cycles; 475mA inrush current, 230mA holding current, 50 cycles
Brand:
Hunter
Type:
Valve
Body Material:
Plastic
Application:
Residential
Solenoid:
Yes
Size:
1 in.
Connection:
MPT
Flow Control:
No Flow Control
Valve Type:
Jar Top
Specifications (325.75 kB)
