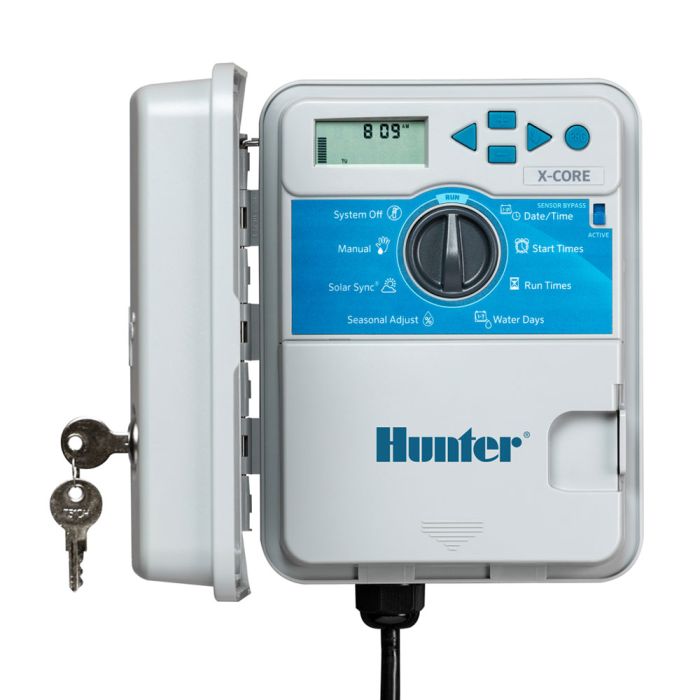

This entry-level residential controller offers simple operation with Solar Sync compatibility. With easy-to-configure control for up to 8 stations, including 3 programs and 4 start times each, the X-Core is the perfect solution for residential applications. Install the revolutionary Solar Sync ET sensor that regulates irrigation run times daily based on locally measured weather. X-Core is also compatible with Hunter remotes for quick, wireless activation of irrigation. Installation, operation, and maintenance are designed to be simple while still delivering optimal efficiency and reliability.
WaterSense Smart Watering Controller By Adding Solar Sync
By adding a Solar Sync to your Hunter controller, it transforms into a smart controller using local weather conditions to tailor watering schedules to actual conditions on the site. A Hunter controller with Solar Sync has been independently proven to have a detailed list of water-saving features and has been approved by the EPA as a WaterSense Smart Watering Controller.
Easy Retrieve Memory
A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.
Programmable Rain Delay
The Programmable Rain Delay feature incorporates a user-specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather but will resume watering automatically without requiring a return visit to the controller. The controller displays the number of days remaining before watering resumes.
The QuickCheck feature makes field wiring issues easy to assess with the push of a button. QuickCheck displays an ERR message when a field wiring short is detected on a particular station number.
This feature offers protection against unreliable power, retaining current time, date, and program data.
Automatic Short Circuit Protection
Automatic short circuit protection is a feature found in all Hunter AC powered controllers. This feature automatically detects electrical faults, which are typically caused by wiring issues. Only affected stations are skipped, allowing all other stations to water normally as programmed. There are no fuses to blow or internal circuit breakers to trip, so complete irrigation system shutdown is avoided.
Seasonal Adjustment: Global or Automatic Updates with Solar Sync
This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjustment to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program. This model offers two different ways to use Seasonal Adjustment to reduce water usage: Global and Daily.
Global: The Global option provides a Seasonal Adjustment percentage to all station Run Times on all of the controller's Programs.
Daily: With the addition of a Solar Sync ET Sensor, the controller has the ability to automatically implement daily adjustments based on measured local weather.
Delay Between Stations
Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements.
The ability to specify which program will be shut down in response to a specific sensor alarm. This allows programs unaffected by the sensor to continue automatic operations.
Number of stations: 2, 4, 6, 8
Enclosures: Indoor and outdoor
Independent programs: 3
Start times per program: 4
Max. station run time: 4 hrs
Transformer input: 120 VAC, 60 Hz
Transformer output: 24 VAC, 1 A
Station output: 24 VAC, 0.56 A
P/MV output: 24 VAC, 0.28 A
Sensor inputs: 1
Approvals: Plastic IP54, UL, c-UL, FCC, CE, RCM
Warranty period: 2 years
A - Height: 8”
B - Width: 7”
C - Depth: 3¾”
|Power Source||AC Powered|
|Number of Programs||3|
|Start Times Per Program||4|
|Max Station Run Time (HRS)||4|
|Sensor Compatible||Rain, Freeze|
|Rain Sensor Compatible||Yes|
|Freeze Sensor Compatible||Yes|
