Battery-powered controller delivers the power without the plug.

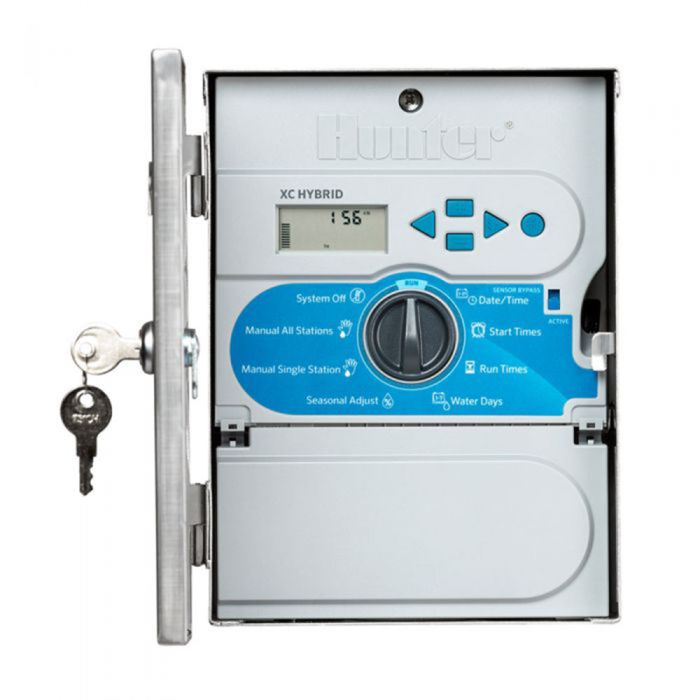

The XC Hybrid Controller delivers extensive power without the plug. Built with all the same efficient water management features as the XC Controller, the XC Hybrid operates DC latching solenoids with battery power or a plug in 24VAC transformer. Ready for outdoor or indoor installation, the XC Hybrid comes in 4, 6, 8, 10 and 12 station plastic models. That means it's the right solution for a wide range of residential and commercial applications. Small residential areas, parks, gardens, roadway medians and roundabouts are ready for the XC Hybrid. With Easy Retrieve memory backup and on-board, non-volatile memory, you've got the assurance to recall all of the controller's watering programs.
Battery or AC powered
OPERATES WITH DC LATCHING SOLENOIDS ONLY!
Type: Fixed
Plug-in transformer NOT included
Independent programs: 3
Max. station run time: 4 hrs
Enclosure: Outdoor Stainless Steel
Start times per program: 4
Warranty period: 2 years
Easy retrieve A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.
One touch manual start and advance Allows the user to manually start/test any station by simply pressing and holding the right arrow button, and then adding a run time to the appropriate station.
Rain Sensor Bypass Toggle switch that controls the input signal from the weather sensor (Rain-Clik, Freeze-Clik, Wind-Clik, etc). When the switch is set to “Bypass†the controller will ignore the signal from the sensor and irrigate normally.
Programmable Rain Delay The Programmable Rain Delay feature incorporates a user specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather, but will resume watering automatically without requiring a return visit to the controller. The controller displays the number of days remaining before watering resumes.
Non-Volatile Memory This feature offers protection against unreliable power, retaining current time, date, and program data.
Global Seasonal Adjustment This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjustment to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program.
Delay Between Stations A delay in watering between individual stations as the controller moves from one to the next. The delay may range from a few seconds, to permit slow-closing valves time to shut down, or much longer to allow pressure tanks, etc., to refill or recharge.
Sensor Programmability Sensor Programmability feature allows the user to specify which stations should shut down in response to a sensor alarm, thus allowing stations or programs to run uninterrupted in the event of a sensor alarm.
Product Details
Stainless Steel Outdoor Timer Dimensions
9-3/4" H x 7-3/8" W x 4-1/4" D
Electrical Specifications
Operates DC latching solenoids (only) 9-11 VDC
Pump/master valve
Sensor inputs: 1
Operating temperature: 0 F to 140‚ F
Operates on battery power or 24VAC plug in transformer (not included) or optional Solar Panel
Uses 6 C batteries (stainless model)
Measurements
A - Height: 9 ¾"
B - Width: 7"
C - Depth: 4 ¼"
Water management via dc power Find advance water management control at your fingertips. Compact, user-friendly and battery powered, the XC Hybrid is proof big things come in small packages. Features such as a 365 day calendar, three independent programs (each with four start times), global seasonal adjustment and station-controlled sensors mean saving a little blue and a lot of green. And we've got you covered: With 'Easy Retrieve' memory backup and on-board, non-volatile memory, you've got the assurance to recall all the controller's watering programs. Did we put the XC in 'excellence' You'll think so.
