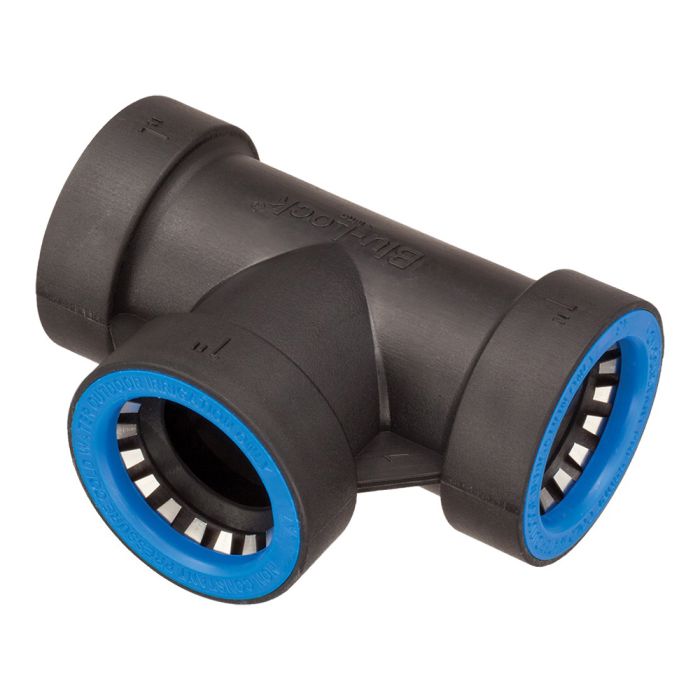

Hydro-Rain Blu-Lock Tee 1" Blu-Lock x Blu-Lock x Blu-Lock
Hydro-Rain Blu-Lock Tee (BL401-010)
PVC Connection: Blu-Lock x Blu-Lock x Blu-Lock
Size (in.): 1"
Features & Benefits
Working in a sprinkler trench is tough enough-don't make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps or frustrating barbed fittings. Hydro-Rain offers a better way: Blu-Lock. Everything you do from the valve out, you can now do faster and easier with Blu-Lock. Primer? Glue? Clamps? Tools?
With the Blue-Lock system, you don't need them! Simply stated, Blu-Lock by Hydro-Rain is the fastest, greenest, irrigation installation method in the world. Blu-Lock is for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections only.
Blu-Lock 3X takes installation speed and ease to new heights. The addition of three key new features makes push-fit installation easier and more flexible.
Easier insertion force has been reduced by half to make installation even faster.
Compatible works with all 80# and 100# SIDR 15 and 19 pipe.
Releasable all 1/2", 3/4", and 1" fittings are releasable and reusable with the Blu-Lock® release tool or "BLR" collar. Simply stated, Blu-Lock® 3X is the fastest, greenest, irrigation installation method in the world.
Heavy-Duty Construction Built tough fittings made from UV-resistant ABS, stainless steel and EPDM seals are designed and tested to ensure toughness.
Patented Retaining System Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
Patented Retaining System Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
Outside Diameter (OD) Technology Flow is unimpeded for 25 percent increase in flow versus traditional insert fittings.
High Quality and "Easy-Flex" Blu-Lock® lateral and swing pipe are made from virgin resins and meet ASTM standards.
Releasable 1/2" swing fittings are releasable with the patented quick release collar and 3/4" and 1" fittings release with release tools. All fittings can be reused.
Hydro-Rain® Warranty 3-year limited warranty on fittings, 30-year limited warranty on pipe. Some restrictions apply.
Built for Speed Advantages
Patented "Push-and-Go" Design 100% tool and chemical free approach cut installation time in half.
True System Integration Total compatibility of fittings, pipe, manifolds, valves, saddles, and heads.
Exclusive Trench and Trenchless Technology Coil and straight length pipe options provide unrivaled flexibility.
Built for Green Advantages
Blu-Lock® Pipe is "Green" Environmentally-friendly, recyclable HDPE pipe provides a superior alternative to PVC.
Blu-Lock® Fittings are Green Outside diameter (OD) technology ensure lower friction loss for better efficiency.
Pipe and Fittings are Chemical Free Glueless, tool-free installation protects the environment and the long-term health of your crew.
Product Details
Blu-Lock® 1" (2,5 cm) Lateral Pipe Fittings:
Max Working Pressure: 150 PSI (10,3 BAR) at 72°F (23°C)
Burst Pressure: Exceeds 350 PSI (24,1 BAR)
Working Pressure: 10-150 PSI (0,69-10,3 BAR)
Materials
UV-resistant ABS, stainless steel and EPDM
Color: Blue
1" (2,54 CM) PIPE PRESSURE LOSS*
FLOW (GPM)
VELOCITY (FPS)
PRESSURE LOSS (PSI)
1
-
-
2
-
-
3
-
-
4
1.48
0.46
5
1.86
0.76
6
2.23
1.06
7
2.60
1.37
8
2.97
1.80
9
3.34
2.23
10
3.71
2.76
11
4.08
3.07
12
4.45
3.85
13
4.83
4.45
14
5.2
5.10
15
5.57
5.76
20
7.42
9.90
25
9.98
14.90
* For non-constant pressure valve-out outdoor irrigation connections only. Working in a sprinkler trench is tough enoughâ€dont make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps, or frustrating barbed fittings. Hydro-Rain® offers a better way: Blu-Lock® push-ngo lateral sprinkler pipe fittings for HDPE and swing pipe.
