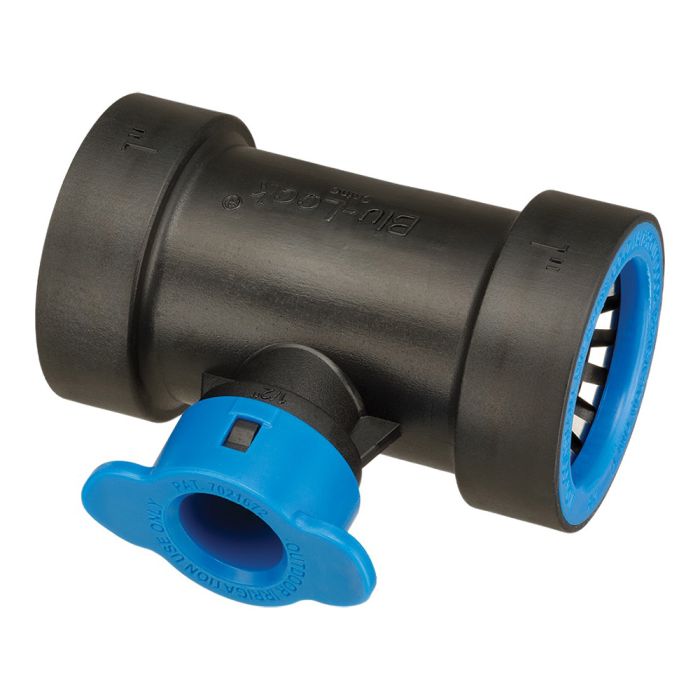

Hydro-Rain Blu-Lock Tee 1" x 1" x 1/2" Blu-Lock x Blu-Lock x BLR
Hydro-Rain Blu-Lock Tee (BL401-130)
Blu-Lock x Blu-Lock x BLR
Fitting Size: 1" x 1" x 1/2"
Features & Benefits
Working in a sprinkler trench is tough enough-don't make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps or frustrating barbed fittings. Hydro-Rain offers a better way: Blu-Lock. Everything you do from the valve out, you can now do faster and easier with Blu-Lock. Primer? Glue? Clamps? Tools?
With the Blue-Lock system, you don't need them! Simply stated, Blu-Lock by Hydro-Rain is the fastest, greenest, irrigation installation method in the world. Blu-Lock is for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections only.
Blu-Lock® 3X takes installation speed and ease to new heights. The addition of three key new features makes push-fit installation easier and more flexible.
Easier - insertion force has been reduced by half to make installation even faster.
Compatible - works with all 80# and 100# SIDR 15 and 19 pipe.
Releasable - all 1/2", 3/4", and 1" fittings are releasable and reusable with the Blu-Lock® release tool or "BLR" collar. Simply stated, Blu-Lock® 3X is the fastest, greenest, irrigation installation method in the world.
Heavy-Duty Construction - Built tough fittings made from UV-resistant ABS, stainless steel and EPDM seals are designed and tested to ensure toughness.
Patented Retaining System - Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
Patented Retaining System - Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
Outside Diameter (OD) Technology - Flow is unimpeded for 25 percent increase in flow versus traditional insert fittings.
High Quality and Easy-Flex" - Blu-Lock® lateral and swing pipe are made from virgin resins and meet ASTM standards.
Releasable - 1/2" swing fittings are releasable with the patented quick release collar and 3/4" and 1" fittings release with release tools. All fittings can be reused.
Hydro-Rain® Warranty - 3-year limited warranty on fittings, 30-year limited warranty on pipe. Some restrictions apply.
Built for Speed Advantages
Patented Push-and-Go" Design - 100% tool and chemical free approach cut installation time in half.
True System Integration - Total compatibility of fittings, pipe, manifolds, valves, saddles, and heads.
Exclusive Trench and Trenchless Technology - Coil and straight length pipe options provide unrivaled flexibility.
Built for Green Advantages
Blu-Lock® Pipe is "Green" - Environmentally-friendly, recyclable HDPE pipe provides a superior alternative to PVC.
Blu-Lock® Fittings are Green - Outside diameter (OD) technology ensure lower friction loss for better efficiency.
Pipe and Fittings are Chemical Free - Glueless, tool-free installation protects the environment and the long-term health of your crew.
Product Details
Blu-Lock® 1" (2,5 cm) Lateral Pipe Fittings:
Max Working Pressure: 150 PSI (10,3 BAR) at 72°F (23°C)
Burst Pressure: Exceeds 350 PSI (24,1 BAR)
Working Pressure: 10-150 PSI (0,69-10,3 BAR)
Materials
UV-resistant ABS, stainless steel and EPDM
Color: Blue
1" (2,54 CM) PIPE PRESSURE LOSS*
FLOW (GPM)
VELOCITY (FPS)
PRESSURE LOSS (PSI)
1
-
-
2
-
-
3
-
-
4
1.48
0.46
5
1.86
0.76
6
2.23
1.06
7
2.60
1.37
8
2.97
1.80
9
3.34
2.23
10
3.71
2.76
11
4.08
3.07
12
4.45
3.85
13
4.83
4.45
14
5.2
5.10
15
5.57
5.76
20
7.42
9.90
25
9.98
14.90
* For non-constant pressure valve-out outdoor irrigation connections only. Working in a sprinkler trench is tough enoughâ€dont make it harder by using traditional pipe fitting methods that require hot, toxic glue, clamps, or frustrating barbed fittings. Hydro-Rain® offers a better way: Blu-Lock® push-ngo lateral sprinkler pipe fittings for HDPE and swing pipe.
