Hydro Rain HRB and Rain Bird Replacement Solenoid | HRB-XXX-SD-RP

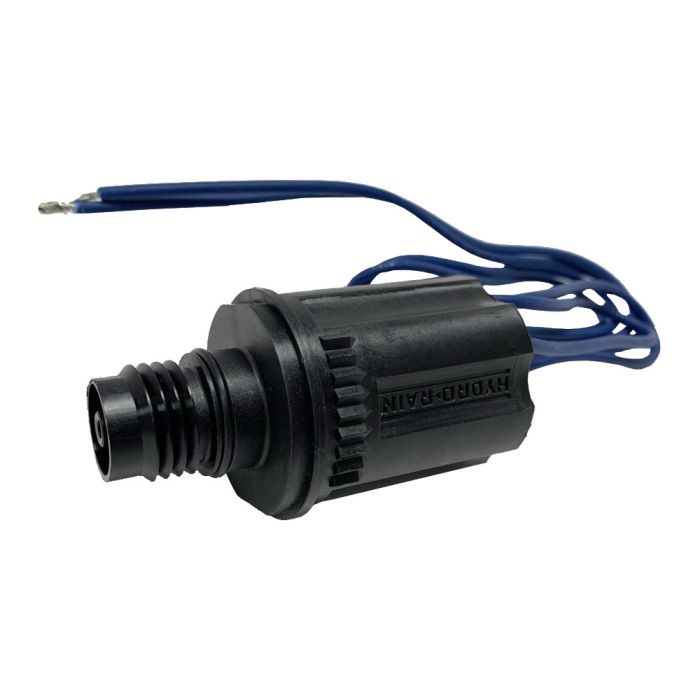

Hydro-Rain HRBV-XXX-SD-RP HRB Series Solenoid 24v - Solenoid ONLY

You want a valve you can install and forget - one that goes on working flawlessly year after year even in pressures up to 200 PSI. That's why we built the HRB series valves with a durable glass-filled nylon and a fabric-reinforced diaphragm: to ensure toughness plus reliable, long- lasting performance. The diaphragm spring and fastening components are corrosion-resistant stainless steel, and the flow-control stem is made of solid, heavy-duty brass. A grit screen on the diaphragm prevents problems from sand and debris. Plus, the valve is designed to close slowly to avoid water hammer damage.

Features and Benefits

• Residential and commercial ready-For use on low flow drip zones to high flow commercial 1in rotor applications
• Pilot hole filter screen-Prevents debris from inhibiting valve operation
• Flow control handle-Provides means to manually adjust flow rate to the sprinkler system
• Slow Closing-Prevents water hammer resulting in less stress on the entire sprinkler system
• Durable design-Glass-filled nylon body construction for maximum performance under extreme conditions
• Stainless steel studs-Molded directly into the valve body prevent damage due to over tightening
• Manual external bleed-Great for year end seasonal shut down (flushing water from the system)
• Manual internal bleed-For on/off operation at the valve
• One piece solenoid design-Captured plunger and spring keep for convenient servicing
• Solid brass and stainless steel-HRB's brass flow control stem and stainless steel diaphragm spring resist corrosion and promote years of reliable service
• Versatility-Models in the HRB series range from 1in up to 2in

Operating Range:

• Pressure: 20~200 PSI (1.38~13.80 BAR)
• Flow: 0.25~200 GPM (0.06~45.40 m3/h; 0.32~12.60 l/s)
• Water Temperature: Up to 150 degrees F (66 degrees C)
• Ambient Temperature: Up to 150 degrees F (66 degrees C)

Dimensions:

• HRB 100 - Height: 6-1/2" (16.5 cm) - Length: 4" (10.2 cm) - Width: 4" (10.2 cm)
• HRB 150 / 200 - Height: 8" (20.3 cm) - Length: 6" (15.2 cm) - Width: 6" (15.2 cm)
