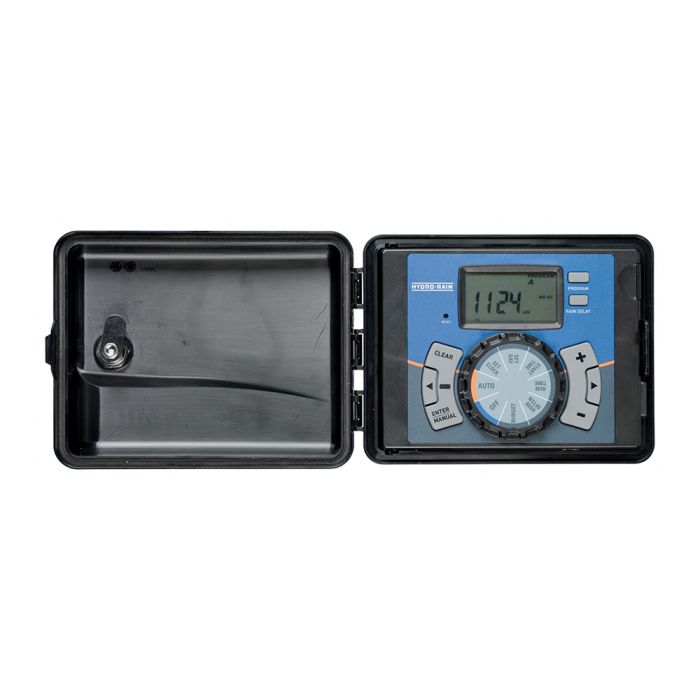

Hydro-Rain HRC-100 12 Station Indoor/Outdoor Controller | HRC-100-C-12

Name: Hydro-Rain HRC-100 12 Station Indoor/Outdoor Controller | HRC-100-C-12
Brand: Hydro-Rain
SKU: HRC-100-C-12
Price: 123.03 USD
Availability: InStock

SKU

HRC-100-C-12

Sales Price $123.03 Our Price $212.63 You save 42%

Overview

Hydro-Rain HRC-100-C-12 HRC 100 12-station Indoor / Outdoor Controller 3 Program

A straightforward, user-friendly sprinkler controller which combines operating simplicity with feature-rich flexibility. For starters, the HRC 100 C is enclosed in an indoor/outdoor ULÃƒÂ¯¿½ approved case and is equipped with 4, 6, 9 or 12 watering stations. The HRC 100 C offers three independent programs ÃƒÂ¯¿½ A and B and C ÃƒÂ¯¿½ with up to four start times per program. Water conservation features? Of course! The HRC 100 CÃƒÂ¯¿½s water budgeting feature allows you to set watering durations from 10 to 200 percent of the programmed time, in 10 percent increments. ThereÃƒÂ¯¿½s even a station advance button that lets you skip to the next station while watering. Plus, youÃƒÂ¯¿½ll appreciate the simplicity of the large, easy-to-read LCD display, as well as the big buttons and dial ÃƒÂ¯¿½ the perfect enhancements for easy user operation.

BUILT FOR SPEED ADVANTAGES

Fast to Program ÃƒÂ¯¿½Large dial, oversized LCD display, make programming quick and easy.
Fast to Install ÃƒÂ¯¿½Factory-installed plug-and-go power cord means no in-field transformer wiring is required.
Hinged Panel ÃƒÂ¯¿½Door allows quick and easy access to valve wiring (shown on back).

BUILT FOR GREEN ADVANTAGES

Watering Budgeting ÃƒÂ¯¿½Match seasonal watering requirements by increasing or decreasing the durations of the stations in any of the two programs from 10%~200% of base schedule.
Rain Delay ÃƒÂ¯¿½Rain sensor bypass technology allows manual or automatic rain delay of 24-hours, 48-hours and 72-hours.
24 Volt Out Rain Sensor Terminals ÃƒÂ¯¿½Make installation of a wireless rain sensor receiver quick and convenient.

Features & Benefits

Three Programs ÃƒÂ¯¿½Programs A, B and C offer multi-use and flexible watering schedules by days of the week, even or odd days, or at intervals of 1 to 32 days.
4 Start Times Per Program ÃƒÂ¯¿½Flexibility to manage schedules for variable plant requirements and soil types.
Program Data Safely Stored ÃƒÂ¯¿½Power out? No worries! All programming information is stored with battery backup.
Manual Advance ÃƒÂ¯¿½One-button station affords convenience of quick select and advance during manual watering.
Indoor/Outdoor ULÃƒÂ¯¿½ Cabinet ÃƒÂ¯¿½Weather tight and locking for safety, security and peace of mind
Three Year Unconditional Parts Warranty ÃƒÂ¯¿½Hydro-RainÃƒÂ¯¿½ warrants that its product will be free from defects for a minimum of three years from the date of purchase.

OPERATING SPECIFICATIONS

Station Timing: From 1ÃƒÂ¯¿½240 minutes.
Automatic Starts: Up to 12 start times per day.
Programming Schedule: Days of week, watering intervals and odd/even days.
Rain Delay: Setting for 24, 48, 72 hours, or 4 to 32 days.
Water Budgeting: Adjusts for seasonal watering demands (10% to 200% in 10% increments).

ELECTRICAL SPECIFICATIONS

Transformer Output: 24VAC/26VAC, 1 Amp.
Battery Backup: 3V lithium (program saved in non-volatile memory).
Surge Protection Primary input has built-in MOV (metal oxide varistor), valve wire MOV protects against lightning strikes
UL/CL: Approved.
Wire Terminals: Tool-less & color-coded
Protection: Built-in fault and surge protection
Pump Start Terminal.

Manuals and Literature

Specifications Manual

Specs

More Information
Brand	Hydro-Rain
Product Type	Standard Controllers
Expandability	Fixed
Power Source	AC Powered
Number of Programs	3
Start Times Per Program	4
Max Station Run Time (HRS)	4
Indoor	Yes
Outdoor	Yes
Sensor Compatible	Rain
Rain Sensor Compatible	Yes
Application	Residential
Warranty	3 Years
Series	HRC-100
Zones	12
Enclosure Type	Indoor/Outdoor
