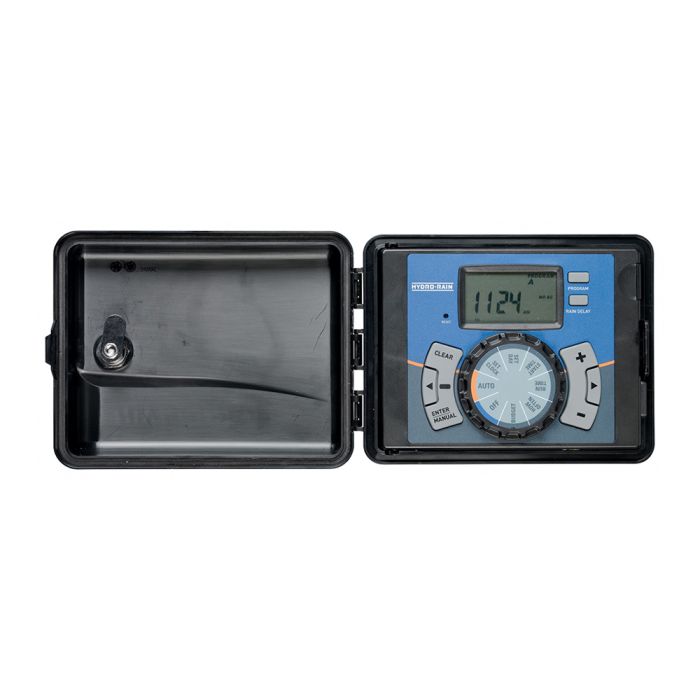

Hydro-Rain HRC-100 4 Station Indoor/Outdoor Controller | HRC-100-C-04

Name: Hydro-Rain HRC-100 4 Station Indoor/Outdoor Controller | HRC-100-C-04
Brand: Hydro-Rain
SKU: HRC-100-C-04
Price: 75.37 USD
Availability: InStock

SKU

HRC-100-C-04

Sales Price $75.37 Our Price $132.20 You save 43%

Overview

Hydro-Rain HRC-100-C-04 HRC 100 4-station Indoor / Outdoor Controller 3 Program

A straightforward, user-friendly sprinkler controller which combines operating simplicity with feature-rich flexibility. For starters, the HRC 100 C is enclosed in an indoor/outdoor UL approved case and is equipped with 4, 6, 9 or 12 watering stations. The HRC 100 C offers three independent programs - A and B and C - with up to four start times per program. Water conservation features? Of course! The HRC 100 C's water budgeting feature allows you to set watering durations from 10 to 200 percent of the programmed time, in 10 percent increments. There's even a station advance button that lets you skip to the next station while watering. Plus, you'll appreciate the simplicity of the large, easy-to-read LCD display, as well as the big buttons and dial - the perfect enhancements for easy user operation.

BUILT FOR SPEED ADVANTAGES

Fast to Program - Large dial, oversized LCD display, make programming quick and easy.
Fast to Install - Factory-installed plug-and-go power cord means no in-field transformer wiring is required.
Hinged Panel - Door allows quick and easy access to valve wiring (shown on back).

BUILT FOR GREEN ADVANTAGES

Watering Budgeting - Match seasonal watering requirements by increasing or decreasing the durations of the stations in any of the two programs from 10%~200% of base schedule.
Rain Delay - Rain sensor bypass technology allows manual or automatic rain delay of 24-hours, 48-hours and 72-hours.
24 Volt Out Rain Sensor Terminals - Make installation of a wireless rain sensor receiver quick and convenient.

Features & Benefits

Three Programs - Programs A, B and C offer multi-use and flexible watering schedules by days of the week, even or odd days, or at intervals of 1 to 32 days.
4 Start Times Per Program - Flexibility to manage schedules for variable plant requirements and soil types.
Program Data Safely Stored - Power out? No worries! All programming information is stored with battery backup.
Manual Advance - One-button station affords convenience of quick select and advance during manual watering.
Indoor/Outdoor UL® Cabinet - Weather tight and locking for safety, security and peace of mind
Three Year Unconditional Parts Warranty - Hydro-Rain warrants that its product will be free from defects for a minimum of three years from the date of purchase.

OPERATING SPECIFICATIONS

Station Timing: From 1-240 minutes.
Automatic Starts: Up to 12 start times per day.
Programming Schedule: Days of week, watering intervals and odd/even days.
Rain Delay: Setting for 24, 48, 72 hours, or 4 to 32 days.
Water Budgeting: Adjusts for seasonal watering demands (10% to 200% in 10% increments).

ELECTRICAL SPECIFICATIONS

Transformer Output: 24VAC/26VAC, 1 Amp.
Battery Backup: 3V lithium (program saved in non-volatile memory).
Surge Protection Primary input has built-in MOV (metal oxide varistor), valve wire MOV protects against lightning strikes
UL/CL: Approved.
Wire Terminals: Tool-less & color-coded
Protection: Built-in fault and surge protection
Pump Start Terminal.

Manuals and Literature

Specifications Manual

Specs

More Information
Brand	Hydro-Rain
Product Type	Standard Controllers
Expandability	Fixed
Power Source	AC Powered
Number of Programs	3
Start Times Per Program	4
Max Station Run Time (HRS)	4
Indoor	Yes
Outdoor	Yes
Sensor Compatible	Rain
Rain Sensor Compatible	Yes
Application	Residential
Warranty	3 Years
Series	HRC-100
Zones	4
Enclosure Type	Indoor/Outdoor
