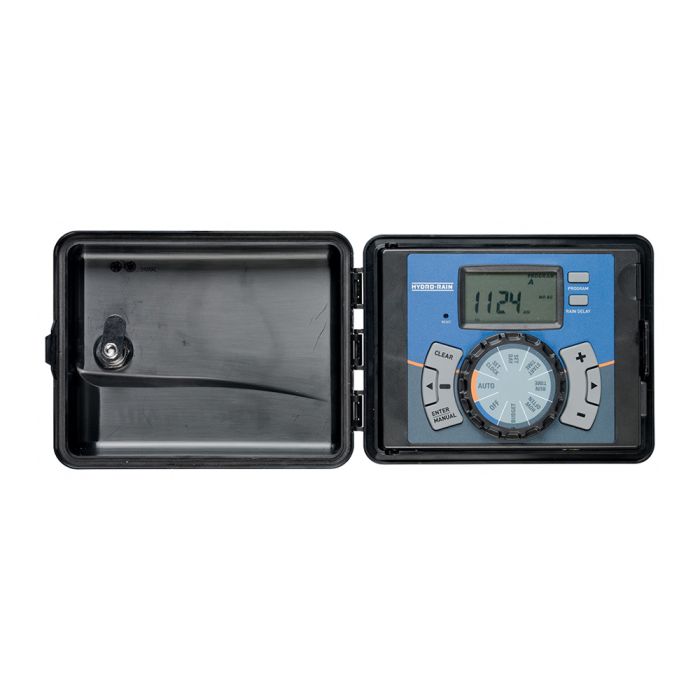

Hydro-Rain HRC-100 6 Station Indoor/Outdoor Controller | HRC-100-C-06

Free Shipping on Orders over $149
Sales Price $86.63 Our Price $179.95 You save 52%

Hydro-Rain HRC-100-C-06 HRC 100 6-station Indoor / Outdoor Controller 3 Program

A straightforward, user-friendly sprinkler controller which combines operating simplicity with feature-rich flexibility. For starters, the HRC 100 C is enclosed in an indoor/outdoor UL� approved case and is equipped with 4, 6, 9 or 12 watering stations. The HRC 100 C offers three independent programs � A and B and C � with up to four start times per program. Water conservation features? Of course! The HRC 100 C�s water budgeting feature allows you to set watering durations from 10 to 200 percent of the programmed time, in 10 percent increments. There�s even a station advance button that lets you skip to the next station while watering. Plus, you�ll appreciate the simplicity of the large, easy-to-read LCD display, as well as the big buttons and dial � the perfect enhancements for easy user operation.


  • Fast to Program �Large dial, oversized LCD display, make programming quick and easy.
  • Fast to Install �Factory-installed plug-and-go power cord means no in-field transformer wiring is required.
  • Hinged Panel �Door allows quick and easy access to valve wiring (shown on back).


  • Watering Budgeting �Match seasonal watering requirements by increasing or decreasing the durations of the stations in any of the two programs from 10%~200% of base schedule.
  • Rain Delay �Rain sensor bypass technology allows manual or automatic rain delay of 24-hours, 48-hours and 72-hours.
  • 24 Volt Out Rain Sensor Terminals �Make installation of a wireless rain sensor receiver quick and convenient.

Features & Benefits

  • Three Programs �Programs A, B and C offer multi-use and flexible watering schedules by days of the week, even or odd days, or at intervals of 1 to 32 days.
  • 4 Start Times Per Program �Flexibility to manage schedules for variable plant requirements and soil types.
  • Program Data Safely Stored �Power out? No worries! All programming information is stored with battery backup.
  • Manual Advance �One-button station affords convenience of quick select and advance during manual watering.
  • Indoor/Outdoor UL� Cabinet �Weather tight and locking for safety, security and peace of mind
  • Three Year Unconditional Parts Warranty �Hydro-Rain� warrants that its product will be free from defects for a minimum of three years from the date of purchase.


  • Station Timing: From 1�240 minutes.
  • Automatic Starts: Up to 12 start times per day.
  • Programming Schedule: Days of week, watering intervals and odd/even days.
  • Rain Delay: Setting for 24, 48, 72 hours, or 4 to 32 days.
  • Water Budgeting: Adjusts for seasonal watering demands (10% to 200% in 10% increments).


  • Transformer Output: 24VAC/26VAC, 1 Amp.
  • Battery Backup: 3V lithium (program saved in non-volatile memory).
  • Surge Protection Primary input has built-in MOV (metal oxide varistor), valve wire MOV protects against lightning strikes
  • UL/CL: Approved.
  • Wire Terminals: Tool-less & color-coded
  • Protection: Built-in fault and surge protection
  • Pump Start Terminal.

Manuals and Literature

Specifications Manual
More Information
Brand Hydro-Rain
Expandability Fixed
Power Source AC Powered
Type Fixed Controller
Number of Programs 3
Start Times Per Program 4
Max Station Run Time (HRS) 4
Indoor Yes
Outdoor Yes
Sensor Compatible Rain
Rain Sensor Compatible Yes
Application Residential
Warranty 3 Years
Series HRC-100
Zones 6
Enclosure Type Indoor/Outdoor
Manual (3.07 MB)
