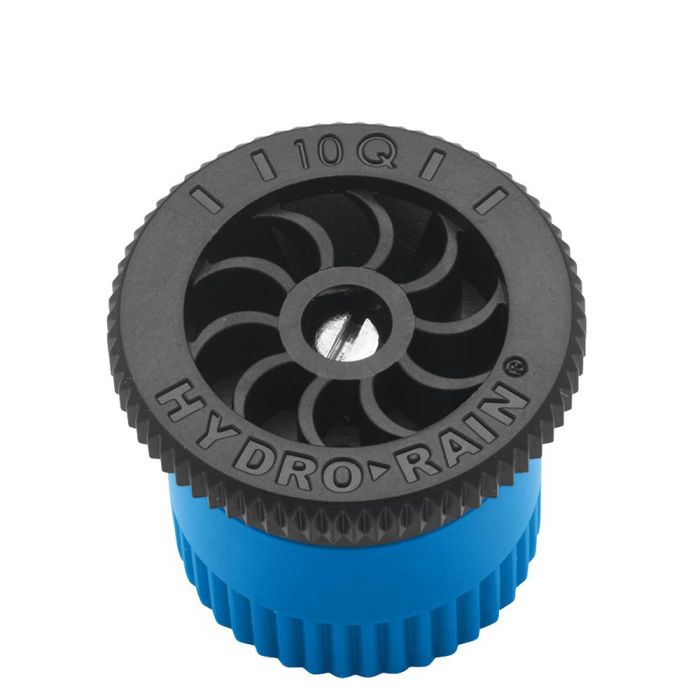

Hydro-Rain HRN-100 Quarter Circle Spray Nozzle (10 ft.) | HRN-100-10-QF

Features & Benefits

• Knurled Nozzle Top Edging Ensures positive installation.
• Pattern-Identified Tops Eliminates all guesswork by specifically identifying nozzle spray pattern.
• Three-piece Design Nozzle stop stays flush to wiper seal across full range of arc adjustment, minimizing susceptibility to damage from lawn equipment and traffic.
• Stainless Steel Adjustment Slotted screw provides precise radius adjustment.
• Blue Filter Screen .02 x .02 filter screen included standard.
• Compatibility Fits Hydro-Rain, Rain Bird, and Hunter.

Built For Speed Advantages

• Fastest to Find Tops are pattern-identified according to spray radius, making identification a snap. Nozzles and filters come in separate, re-sealable bags for complete organization.
• Fastest to Install Coin-edging around top of nozzle gives excellent grip-ability no matter the conditions.
• Fastest to Fine Tune Exclusive adjustment slot allows use of a screwdriver to fine tune distance adjustment during operation, without intruding into the spray pattern.

Operating Range

• Optimal Pressure Range: 15~30 PSI (70 PSI maximum)
• Filtration: .02 X .02 Mesh

Operating Specifications

• Pressure Range: 15 to 70 PSI (1 to 4,8 Bar)
• Recommended Pressure: 30 PSI (2,1 Bar)
• Flow Rate: .45 to 3.7 GPM (0,02 to (0,23)

Built For Green Advantages

• Lower Precipitation Rate Matched precipitation, combined with outstanding distribution uniformity and lower precipitation rate than competition, generates improved efficiency.
• Arc Edge Technology Three-piece design provides best-in-class right and left arc edges, optimizing distribution uniformity.
• Oversized Filter Large .02 x .02 blue mesh filter reduces maintenance and ensures precipitation rate remains at optimal levels longer.
