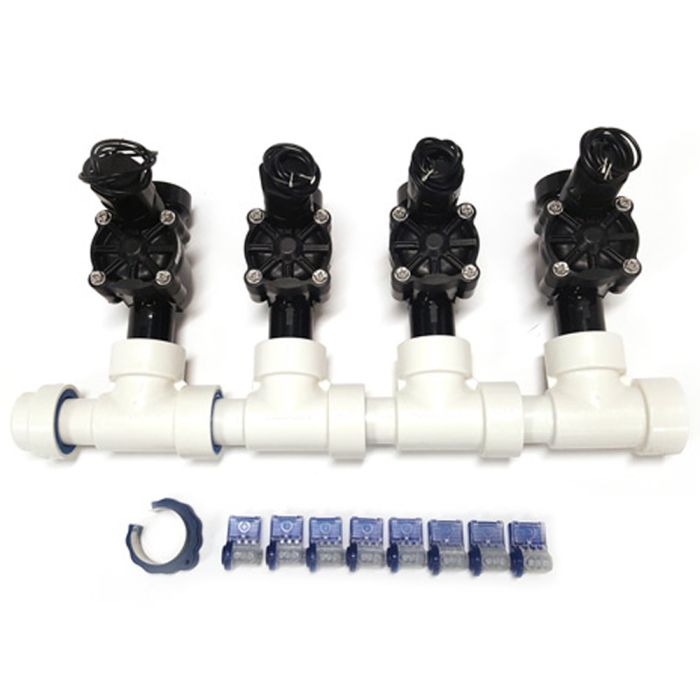

Hydro-Rain HRP-100-PF-PVC 4 Valve Manifold 1 in. PVC-Lock | HR-4HRP-PVCL

SKU
HR-4HRP-PVCL
Free Shipping on Orders over $149
Sales Price $99.97 Our Price $249.95 You save 60%

Hydro-Rain Pre-Assembled PVC-Lock Manifold Systems

The way you install valves is about to change with the new Push-Fit Inline Valve. Utilizing push-fit technology on both the manifold and lateral line sides of the valve for lightning-fast installation, this is simply the fastest manifold/valve assembly you will ever build.

Built for Speed Advantage

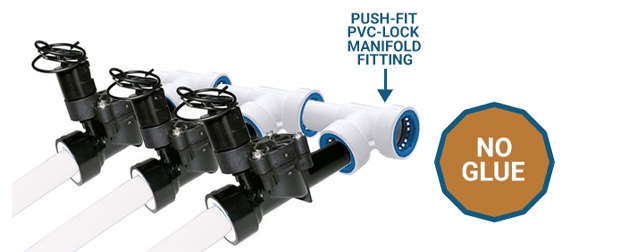

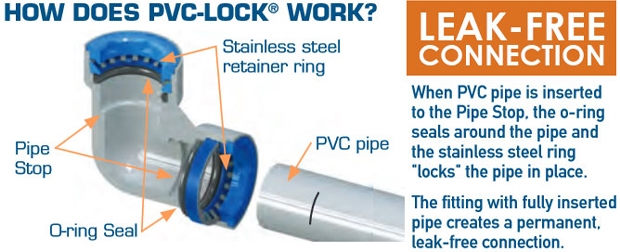

No Thread, No Glue, Push-Fit Installation, Works with the Push-Fit PVC-Lock manifold fitting and 1" PVC for easy manifold and lateral connections.

Built for Green Advantage

No Toxic Glues or Primers - Eliminates harmful VOCs from the valve installation process. Balanced Flow Design - Keeps equal pressure on both sides of the diaphragm while the valve is off, effectively increasing the valve's longevity.

  • Push-Fit Glue-less Design - For fast, clean installation.
  • Strong, Injection-molded Diaphragm - Exceeds industry standards for strength, flexibility and durability.
  • Glass-filled Polypropylene Lid - For extra strength.
  • Three Year Warranty - Hydro-Rain warrants the HRV valves series to be free of defects in material and workmanship. Parts replacement only.
  • Self-cleaning Solenoid Filter - Pilot-flow 90-mesh (200 micron).
  • Internal Bleed Solenoid - Makes manual (at-the-valve) operation easy and spray-free.
  • Captive Solenoid Plunger
  • Captive Bonnet Screws - Provide trouble-free servicing with flat, phillips, or hex driver.
  • Diaphragm spring snap-fits to diaphragm - prevents accidental loss during servicing.
  • Diaphragm is compatible with HRV100 valves

Dimensions

  • Gaps Between Tee: 2 in.
  • Gaps Between Valves: 1-1/2 in.
  • Overall Length: 18-1/4 in.
  • Width: 8-1/4 in.

More Information
Brand Hydro-Rain
Valve Type HRP-100-PF-PVC
Connection PVC-Lock
Outlets 4
Type Manifold
Application Residential
Size 1 in.
Manual (2.51 MB)
Cutsheet (404.56 kB)
