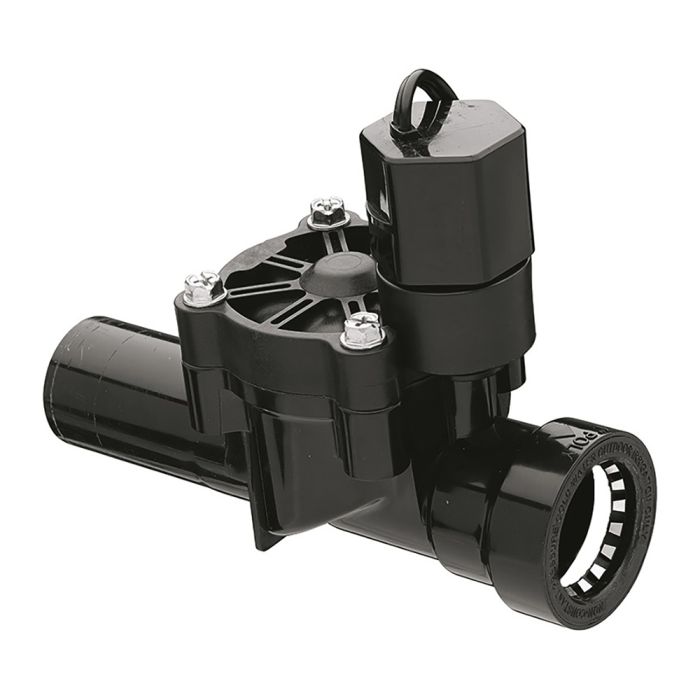

Hydro-Rain HRP Inline Valve 1 in. PVC-Lock x Push-Fit | HRP-100-PF-PVC

Free Shipping on Orders over $149
Sales Price $16.60 Our Price $26.95 You save 38%

Hydro-Rain HRP In-Line Valve 1 in. PVC-Lock x Push-Fit

  • Size: 1 in.
  • Valve Type: In-Line
  • Connection: PVC-Lock x Push-Fit

Features & Benefits

The way you install valves is about to change with the new Push-Fit Inline Valve. Utilizing push-fit technology on both the manifold and lateral line sides of the valve for lightning-fast installation, this is simply the fastest manifold/valve assembly you will ever build.

Built for Green Advantage

No Toxic Glues or Primers—Eliminates harmful VOCs from the valve installation process.
Balanced Flow Design—Keeps equal pressure on both sides of the diaphragm while the valve is off, effectively increasing the valve’s longevity.

  • Push-Fit Glue-less Design—For fast, clean installation.
  • Strong, Injection-molded Diaphragm—Exceeds industry standards for strength, flexibility, and durability.
  • Glass-filled Polypropylene Lid—For extra strength.
  • Three-Year Warranty—Hydro-Rain warrants the HRV valves series to be free of defects in material and workmanship. Parts replacement only.
  • Self-cleaning Solenoid Filter—Pilot-flow 90-mesh (200 microns).
  • Internal Bleed Solenoid—Makes manual (at-the valve) operation easy and spray-free.
  • Captive Solenoid Plunger
  • Captive Bonnet Screws—Provide trouble-free servicing with flat, Phillips, or hex driver.
  • Diaphragm spring snap fits to the diaphragm — prevents accidental loss during servicing.
  • The diaphragm is compatible with HRV100 valves

Product Details

  • Pressure: 15-150 psi
  • Flow: 0.2-40 GPM
  • Water temperature: up to 110˚F (43˚C)
  • Ambient temperature: up to 125˚F (51˚C)
  • 24VAC 50/60 (Cycle) Solenoid
  • Inrush current: .30 A at 60 Hz
  • Holding current: .23 A at 60 Hz
  • Coil resistance: 61


  • Height: 4.7" (11.93 cm)
  • Length: 6.1" (15.49 cm)
  • Width: 2.5" (6.35 cm)

Installation Specification Detail

More Information
Brand Hydro-Rain
Body Material Glass-Filled Polypropylene
Valve Type In-Line
Connection PVC-Lock x Push-Fit
Type Inline Valve
Application Residential
Solenoid Yes
Warranty 3 Years
Size 1 in.
Manual (241.71 kB)
