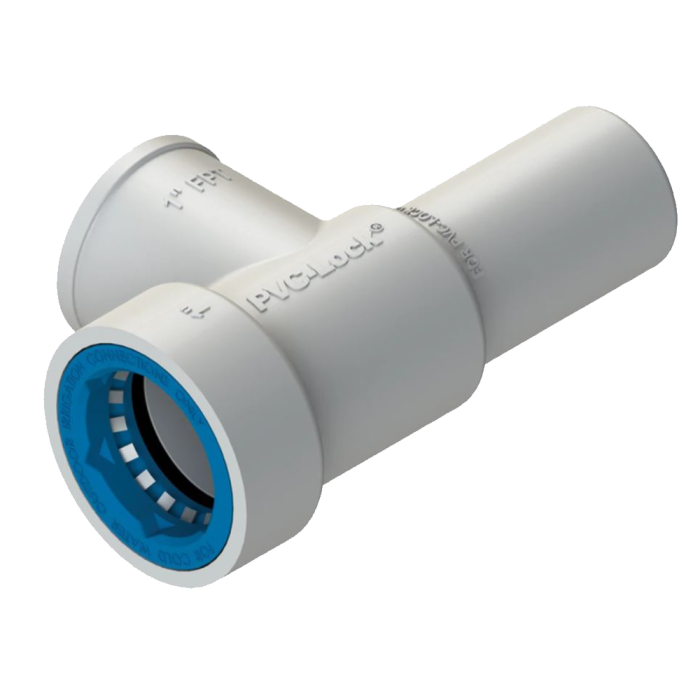

Hydro-Rain Manifold Tee (1 in. PVCL x FPT x Spigot ) | PVCL-477-010

Hydro-Rain Manifold Tee 1" PVCL x FPT x Spigot | PVCL-477-010

• 1 inch PVC-Lock
• 1 inch Female Pipe Thread
• 1 inch PVC

PVC-Lock by Hydro-Rain is a remarkable push-fit fitting for repairing or installing PVC piped sprinkler systems without toxic glues or primers. Each PVC-Lock fitting contains a stainless steel retainer ring and an O-ring seal, preventing leaking at both low and abnormally high pressures. Using PVC-Lock fittings allows you to “lose the glue” and reduces traditional installation times by over 50%. With PVC-Lock youll leave your project with clean hands and a clear conscience knowing that your installation crew and the environment are being protected from harmful chemicals.

Features & Benefits

• Patent Pending “Push-and-Go” Design: 100% tool and chemical free approach that cuts installation time in half or more.
• PVC-Lock Fittings are Chemical Free: Glueless, tool-free installation protects the environment and the long-term health of your crew.
• Patent Pending Retaining System: Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
• Swivels on the Pipe: After installation PVC-Lock® fittings can swivel 360° around the pipe allowing easy sprinkler head orientation and adjustment.
• Universal: For use with all brands of Schedule 40 and 80, and Class PVC pipe.
• Removable & Reusable: On-site sizing adjustments are easy using the PVC-Lock removal tool.
• Pressure Rated: Use on either side of the irrigation valve.

Product Details

• Burst pressure: 600 psi (41.4 bar)
• Working pressure: 0-150 psi (10.5 bar) at 68 degree F (20 degreeC)
• Certifications: IAPMO IGC 300-2013

How it works:

• When PVC pipe is inserted to the pipe stop, the O-ring steals around the pipe and the stainless steel ring “locks” the pipe in place.
• The fitting with a fully inserted pipe creates a permanent, leak-free seal.
