Hydro-Rain PVC-Lock Coupling (3/4 in. PVCL ) | PVCL-429-007

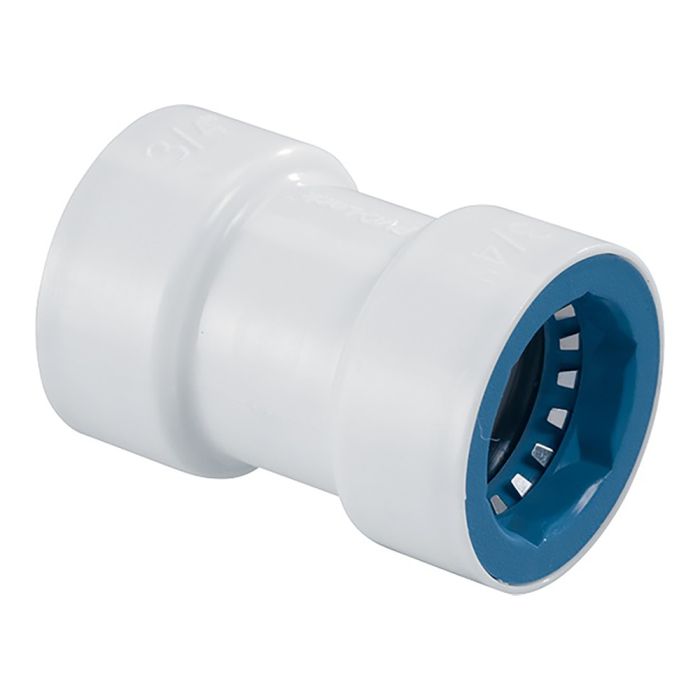

Hydro-Rain PVCL-429-007 3/4 in. PVC-Lock Coupling

PVC-Lock® by Hydro-Rain® is a remarkable push-fit fitting for repairing or installing PVC piped sprinkler systems without toxic glues or primers. Each PVC-Lock® fitting contains a stainless steel retainer ring and an O-ring seal, preventing leaking at both low and abnormally high pressures.

Using PVC-Lock® fittings allows you to "lose the glue" and reduces traditional installation times by over 50%. With PVC-Lock® you'll leave your project with clean hands and a clear conscience knowing that your installation crew and the environment are being protected from harmful chemicals.

• Built for Speed Advantages Patent Pending "Push-and-Go" Design - 100% tool and chemical free approach that cuts installation time in half or more.
• Built for Green Advantages PVC-Lock® Fittings are Chemical Free - Glueless, tool-free installation protects the environment and the long-term health of your crew.
• Patent Pending Retaining System Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
• Swivels on the Pipe After installation PVC-Lock® fittings can swivel 360° around the pipe allowing easy sprinkler head orientation and adjustment.
• Universal For use with all brands of Schedule 40 and 80, and Class PVC pipe.
• Removable & Reusable On-site sizing adjustments are easy using the PVC-Lock® removal tool.
• Pressure Rate Use on either side of the irrigation valve.

• PVC-Lock® Lateral Pipe Fittings:
  • Max working pressure: 150 PSI (10.5 BAR at 68° F (20° C)
  • Burst Pressure: 600 PSI (41.4 BAR)
  • Working Pressure: 0 - 150 PSI (10.5 BAR)
  • Certifications: IAPMO IGC 300-2013

When PVC pipe is inserted to the Pipe Stop, the o-ring seals around the pipe and the stainless steel ring "locks" the pipe in place. The fitting with fully inserted pipe creates a permanent, leak-free connection.
