Hydro-Rain PVC-Lock Elbow (3/4 in. PVCL ) | PVCL-406-007

SKU
PVCL-406-007
Free Shipping on Orders over $149
Sales Price $3.10 Our Price $3.74 You save 17%

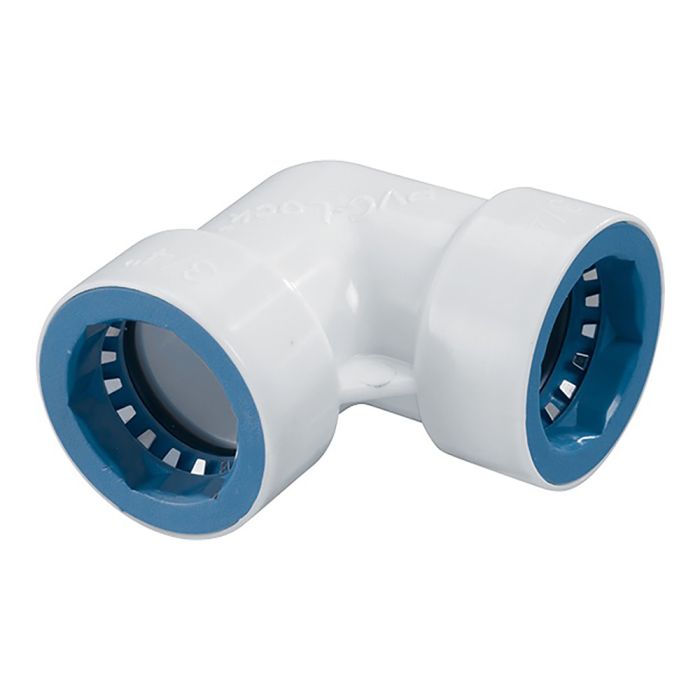

Hydro-Rain PVCL-406-007 3/4 in. PVC-Lock Elbow

PVC-Lock® by Hydro-Rain® is a remarkable push-fit fitting for repairing or installing PVC piped sprinkler systems without toxic glues or primers. Each PVC-Lock® fitting contains a stainless steel retainer ring and an O-ring seal, preventing leaking at both low and abnormally high pressures.

Using PVC-Lock® fittings allows you to "lose the glue" and reduces traditional installation times by over 50%. With PVC-Lock® you'll leave your project with clean hands and a clear conscience knowing that your installation crew and the environment are being protected from harmful chemicals.

Features and Benefits
  • Built for Speed Advantages Patent Pending "Push-and-Go" Design - 100% tool and chemical free approach that cuts installation time in half or more.
  • Built for Green Advantages PVC-Lock® Fittings are Chemical Free - Glueless, tool-free installation protects the environment and the long-term health of your crew.
  • Patent Pending Retaining System Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
  • Swivels on the Pipe After installation PVC-Lock® fittings can swivel 360° around the pipe allowing easy sprinkler head orientation and adjustment.
  • Universal For use with all brands of Schedule 40 and 80, and Class PVC pipe.
  • Removable & Reusable On-site sizing adjustments are easy using the PVC-Lock® removal tool.
  • Pressure Rate Use on either side of the irrigation valve.
Specifications

  • PVC-Lock® Lateral Pipe Fittings:
    • Max working pressure: 150 PSI (10.5 BAR at 68° F (20° C)
    • Burst Pressure: 600 PSI (41.4 BAR)
    • Working Pressure: 0 - 150 PSI (10.5 BAR)
    • Certifications: IAPMO IGC 300-2013

When PVC pipe is inserted to the Pipe Stop, the o-ring seals around the pipe and the stainless steel ring "locks" the pipe in place. The fitting with fully inserted pipe creates a permanent, leak-free connection.

More Information
Brand Hydro-Rain
Product Type 3/4" PVC Lock Fittings
Color White
Max Working Pressure 150 PSI
Burst Pressure 250 PSI
Working Pressure 0-150 PSI
Warranty 1 Year
Size 3/4 in.
Connection PVC-Lock
Material ABS Plastic
