Hydro-Rain PVC-Lock Flexible Coupling (1/2 in. PVCL ) | PVCL-FPC-050

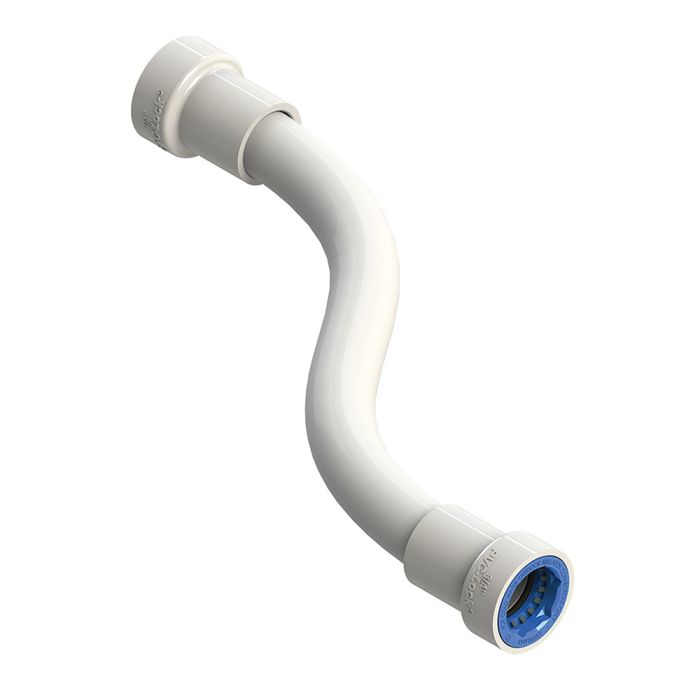

Hydro-Rain PVCL-FPC-050 1/2 in. PVC-Lock Flexible Coupling

PVC-Lock® by Hydro-Rain® is a remarkable push-fit fitting for repairing or installing PVC piped sprinkler systems without toxic glues or primers. Each PVC-Lock® fitting contains a stainless steel retainer ring and an O-ring seal, preventing leaking at both low and abnormally high pressures.

Using PVC-Lock® fittings allows you to ""lose the glue"" and reduces traditional installation times by over 50%. With PVC-Lock® you'll leave your project with clean hands and a clear conscience knowing that your installation crew and the environment are being protected from harmful chemicals.

Features and Benefits

• Built for Speed Advantages Patent Pending ""Push-and-Go"" Design - 100% tooland chemical free approach that cuts installation time in halfor more.
• Built for Green Advantages PVC-Lock® Fittings are Chemical Free - Glueless,tool-free installation protects the environment and thelong-term health of your crew.
• Patent Pending Retaining System Stainless steelteeth grip pipe tight for a strong, leak-proof connection.
• Swivels on the Pipe After installation PVC-Lock®fittings can swivel 360° around the pipe allowing easy sprinkler head orientation and adjustment.
• Universal For use with all brands of Schedule 40 and 80, and Class PVC pipe.
• Removable & Reusable On-site sizing adjustmentsare easy using the PVC-Lock removal tool.
• Pressure Rate Use on either side of the irrigation valve.

Specifications

• PVC-Lock® Lateral Pipe Fittings:
  • Max working pressure: 150 PSI (10.5 BAR at 68° F (20° C)
  • Burst Pressure: 600 PSI (41.4 BAR)
  • Working Pressure: 0 - 150 PSI (10.5 BAR)
  • Certifications: IAPMO IGC 300-2013

  When PVC pipe is inserted to the Pipe Stop, the o-ring seals around the pipe and the stainless steel ring ""locks"" the pipe in place. The fitting with fully inserted pipe creates a permanent, leak-free connection.
