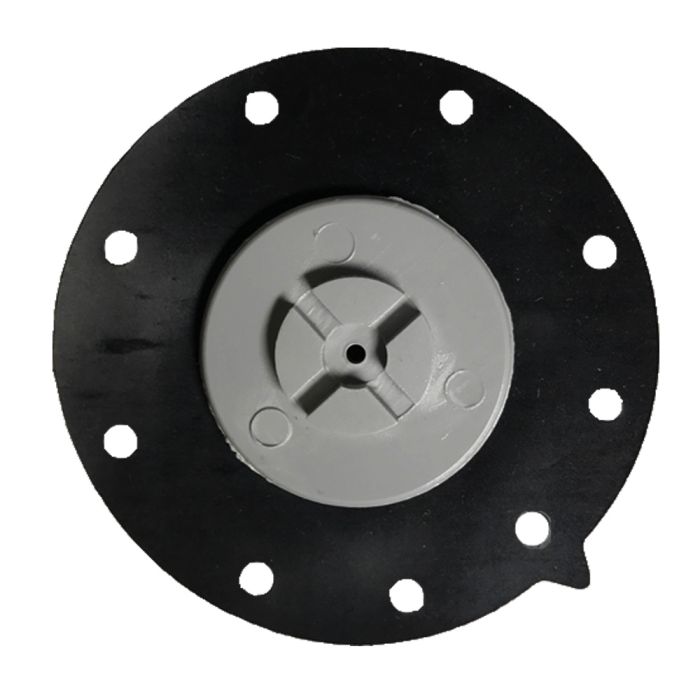

Irritrol 205 and Richdel Replacement Valve Diaphragm 1 in. | 100232-H

• Type: Replacement Valve Diaphragm ONLY
• Compatibility: 205S, 205T, 205SF, 205TF

Features & Benefits

Irritrol 205

The Irritrol 205 Series 1-inch plastic valve is the irrigation industry’s time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature.

Constructed of heavy-duty, corrosion and UV-resistant PVC, the 205 Series features an efficient design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add value to this widely popular valve.

Product Details

Irritrol 205

Operating Specifications

• Flow range: 0.25-30 GPM
• Pressure range: 10-150 psi

Electrical Specifications

• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp
