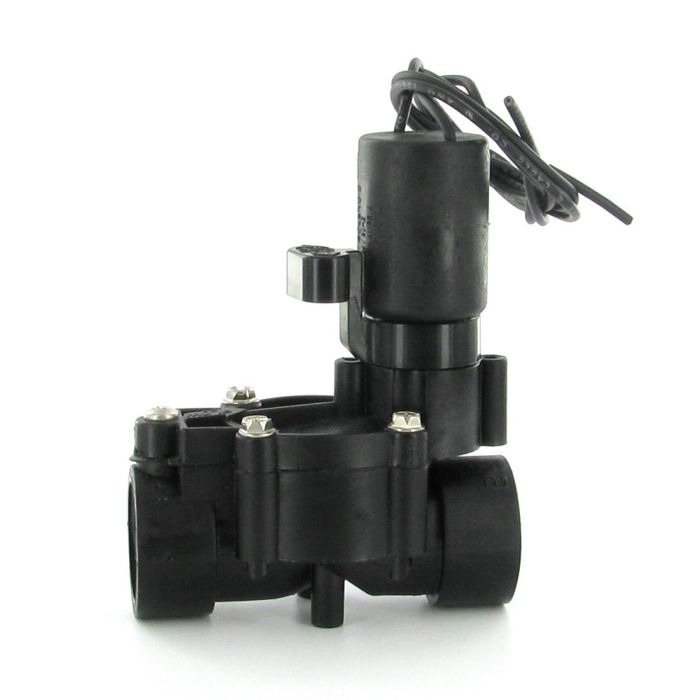

Irritrol 700 Inline Valve 3/4 in. FPT | IR-700B-75

Overview

• Size: 3/4 in.
• Connection: Female Pipe Thread
• Valve Type: In-Line

Features & Benefits

Featuring a straight-through flow path that dramatically reduces pressure loss, the Irritrol UltraFlow Series of plastic valves leads the industry in long-term performance and reliability.

With a flow range from .1 to 180 GPM and a self-cleaning, 150-mesh stainless steel filter screen, these unique valves are ideal for a multitude of potable and dirty water applications. A glass-reinforced nylon body and bonnet, stainless steel spring and hardware, and a rugged, nylon-reinforced Buna-N diaphragm add an extra dimension of toughness to this very durable family of valves.

• Unique straight-through flow path Provides extremely low friction loss
• Slow-closing design Reduces water hammer and resulting stress on the system
• Tough glass-reinforced nylon, stainless steel, and brass construction provides durability and long life
• High and low-flow operation Ensures consistent performance in a variety of applications
• Self-flushing, 150-mesh, stainless steel filter screen on 1-, 1- and 2-inch models Provides consistent operation

Product Details

Electrical Specifications

• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp
• Pressure Range: 10-150 PSI

Dimensions

• H: 4 ¹/₂", W: 1 ⁹/₁₀", D: 3 ²/₅"
