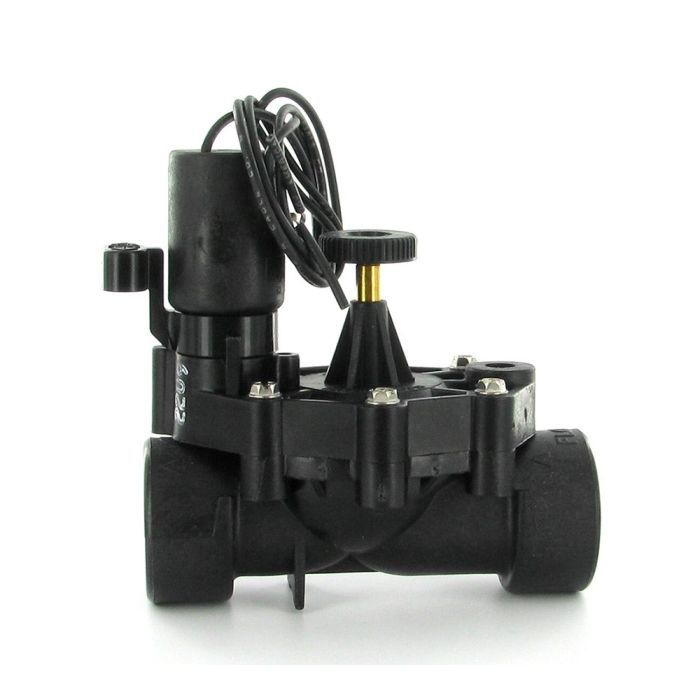

Irritrol 700 Inline Valve with Flow Control 1 in. FPT | IR-700-1

• Size: 1 in.
• Valve Type: In-Line
• Connection: Female Pipe Thread

Features & Benefits

Featuring a straight-through flow path that dramatically reduces pressure loss, the Irritrol UltraFlow Series of plastic valves leads the industry in long-term performance and reliability.

With a flow range from .1 to 180 GPM and a self-cleaning, 150-mesh stainless steel filter screen, these unique valves are ideal for a multitude of potable and dirty water applications. A glass-reinforced nylon body and bonnet, stainless steel spring and hardware, and a rugged, nylon-reinforced Buna-N diaphragm add an extra dimension of toughness to this very durable family of valves.

• Unique straight-through flow path Provides extremely low friction loss
• Slow-closing design Reduces water hammer and resulting stress on the system
• Tough glass-reinforced nylon, stainless steel, and brass construction provides durability and long life
• High and low-flow operation Ensures consistent performance in a variety of applications
• Self-flushing, 150-mesh, stainless steel filter screen on 1-, 1- and 2-inch models Provides consistent operation
• Manual internal bleed
•  Wide flow range
• Flow control allows precise flow adjustment and manual shutoff (not available on ¾-inch model)
• Compact, low-profile design
• Rugged nylon-reinforced Buna-N diaphragm provides leak-proof seal
• Buna-N valve seat seal
• Encapsulated injection-molded solenoid with a captive hex plunger
• Unique three-way stainless steel bonnet screws with threaded brass inserts accept Phillips, flat-blade, and hex-driver tools
• Five-year warranty

Product Details

Electrical Specifications

• Solenoid: 24 V ac
• Inrush volt-amp: 24 V ac-9.6 VA
• Inrush current: .4 amp
• Holding volt-amp: 24 V ac-4.8 VA
• Holding current: .2 amp
• Pressure Range: 10-150 PSi

Dimensions

• H: 4 ¹/₂",
• W: 3"
• D: 4 ³/₅"
