Irritrol I-PRO Spray Head 4 in. | I-PRO400

In stock
SKU
I-PRO400
Free Shipping on Orders over $149
Sales Price $1.55 Our Price $2.29 You save 32%
Case of 50
$1.52 / each

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021

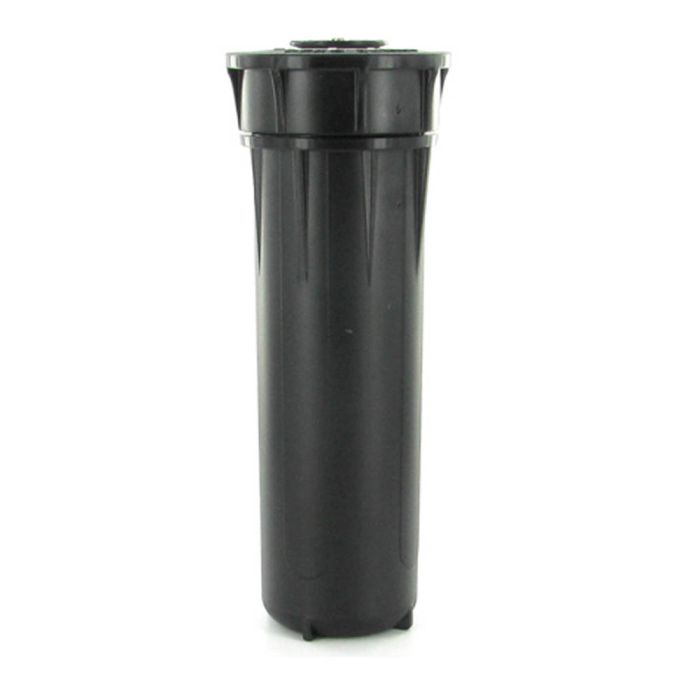

Irritrol I-PRO400 4 in. Pop-Up Sprinkler Spray Head

Irritrol's I-PRO Series spray heads combine a pressure-activated wiper seal and advanced formula lubricant that virtually eliminates troublesome stick ups. Add a unique tapered lip design that prevents debris from entering the body and you have a spray head with superior performance. It is rugged and reliable with a textured body style for a non-slip grip and even easier installation. Available in four pop-up heights with side inlet, pressure regulation and check valve options, the I-PRO Series fits most landscape applications.

Features & Benefits

  • Pressure-activated seal with lubricant additive
  • Pre-installed in-riser pressure regulator and/or check valve (optional)
  • Retrofittable riser
  • Sturdy and robust, textured body
  • Side and bottom on 6" and 12" models ( 6" also available in non-side inlet)
  • Hevy-duty, stainless stell retraction spring
  • Male- threaded riser
  • Pre-installed flush plug
  • Ratcheting riser
  • 5-year warranty

Specifications

  • Inlet size: female NPT threads
  • Exposed diameter: 2
  • Body diameter: 1 5/8
  • Body height: - I-PRO400: 5 6/8 - I-PRO600: 9 1/4 - I-PRO1200-SI: 16
  • Side inlet: 4 3/8 from center of side inlet to top of cap
  • Recommended working pressure: - Standard: 20-50 psi (max 75 psi) - CV: 25-50 psi (max 75 psi) - PR: 30-70 psi (max 75 psi)
  • Precipitation rate: - 0.96 - 4.69 inches per hour - Spacing: 4 - 15 - Flow-by: 0 at 10 psi or greater; .1 GPM otherwise

Manuals and Literature

Brochure
More Information
Brand Irritrol
Type Spray Head
Nozzle Connection Female Nozzles
Spray Body Height (in.) 5 - 3/4 in.
Inlet Size 1/2 in.
Spray Head Spring Stainless Steel
Spray Head Wiper Seal Pressure Activated
Application Residential and Commercial
Warranty 5 Years
Check Valve No Check Valve
Nozzle Installed No Nozzle (Flush Plug Only)
Pop-Up Height 4 in.
Side Inlet No Side Inlet
Specifications (225.48 kB)
