Irritrol I-PRO Spray Head 6 in. | I-PRO600

Name: Irritrol I-PRO Spray Head 6 in. | I-PRO600
Brand: Irritrol
SKU: I-PRO600
Price: 4.98 USD
Availability: InStock

SKU

I-PRO600

Sales Price $4.98 Our Price $6.95 You save 28%

Quantity of 50

$4.78 / each

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021 Massachusetts: January 1, 2022 Washington, D.C.: March 15, 2022

You May Purchase Pressure Regulated Sprays Here

Overview

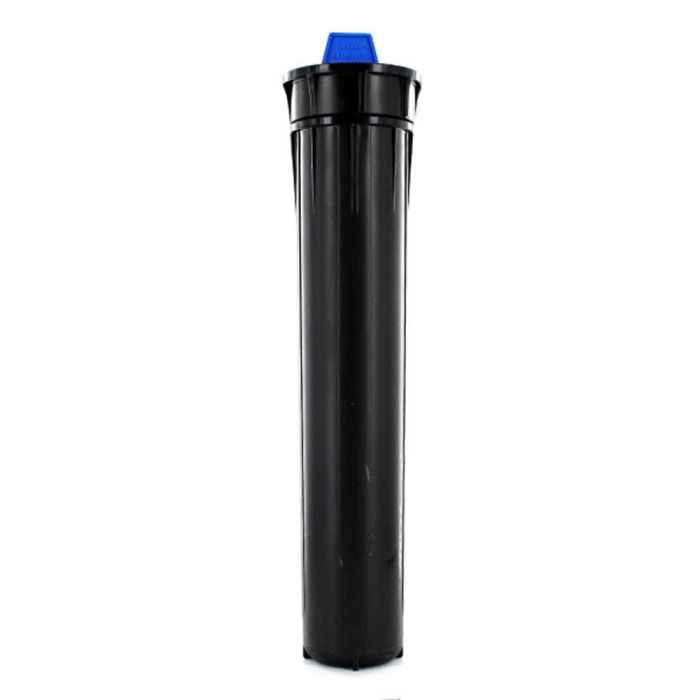

Irritrol I-PRO600 6 in. Pop-Up Sprinkler Spray Head

Irritrol's I-PRO Series spray heads combine a pressure-activated wiper seal and advanced formula lubricant that virtually eliminates troublesome stick ups. Add a unique tapered lip design that prevents debris from entering the body and you have a spray head with superior performance. It is rugged and reliable with a textured body style for a non-slip grip and even easier installation. Available in four pop-up heights with side inlet, pressure regulation and check valve options, the I-PRO Series fits most landscape applications.

Features & Benefits

Pressure-activated seal with lubricant additive
Pre-installed in-riser pressure regulator and/or check valve (optional)
Retrofittable riser
Sturdy and robust, textured body
Side and bottom on 6" and 12" models ( 6" also available in non-side inlet)
Hevy-duty, stainless stell retraction spring
Male- threaded riser
Pre-installed flush plug
Ratcheting riser
5-year warranty

Specifications

Inlet size: 1/2" female NPT threads
Exposed diameter: 2 1/4 "
Body diameter: 1 5/8 "
Body height: - I-PRO400: 5 6/8" - I-PRO600: 9 1/4" - I-PRO1200-SI: 16"
Side inlet: 4 3/8" from center of side inlet to top of cap
Recommended working pressure: - Standard: 20-50 psi (max 75 psi) - CV: 25-50 psi (max 75 psi) - PR: 30-70 psi (max 75 psi)
Precipitation rate: - 0.96 - 4.69 inches per hour - Spacing: 4' - 15' - Flow-by: 0 at 10 psi or greater; .1 GPM otherwise

Manuals and Literature

Brochure

Specs

More Information
Brand	Irritrol
Product Type	Spray Heads
Nozzle Connection	Female Nozzles
Side Inlet	No Side Inlet
Inlet Size	1/2 in.
Spray Body Height (in.)	9 - 1/4 in.
Check Valve	No Check Valve
Spray Head Spring	Stainless Steel
Nozzle Installed	No Nozzle (Flush Plug Only)
Spray Head Wiper Seal	Pressure Activated
Application	Residential and Commercial
Warranty	5 Years
Pop-Up Height	6 in.
Series	I-PRO Series
