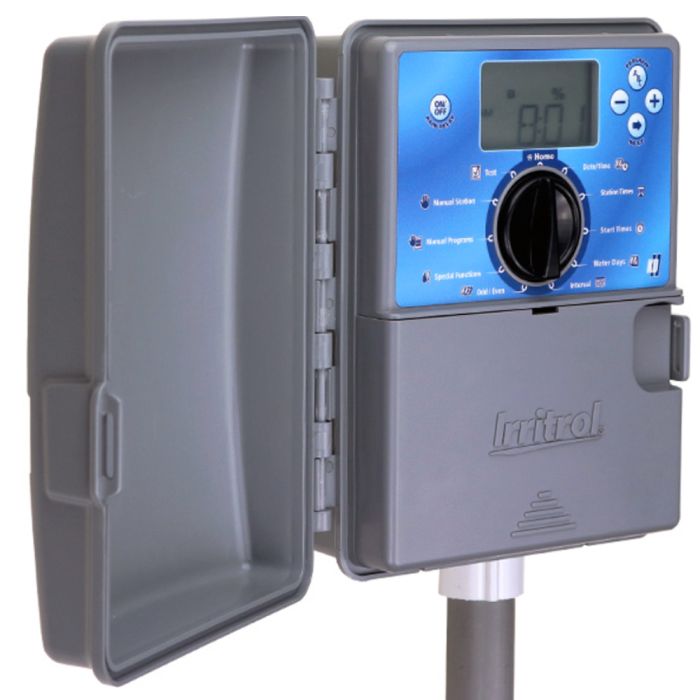

Irritrol KD2 6 Station Indoor/Outdoor Controller | KD600-EXT

Features & Benefits

• Climate Logic® compatible
  Automatically adjusts KwikDial watering based on the weather
• Three independent programs
  Allows differing watering days, start times, station run times and station assignments
• Multiple watering day options
  Provides flexibility to meet water restrictions and diverse plant requirements:
  - Days-of-the-week watering
  - Odd/even date watering with 31st day skip
  - Repeating-day-interval watering (every day, every 2nd day, every 3rd day, etc., up to once every 31 days)
  - Excluded-day option, when used with the odd/even day or day-interval
• Compatible with CRR Series hand-held remote system
  Provides convenient remote station start/pause/resume/off capability (R-100-KIT) for supplemental watering or inspection
• Self-diagnostic, electronic circuit breaker
  Identifies and overrides an electrical “short” in a valve or in valve wiring and continues to water operable stations
• Full family of indoor and outdoor models
  Ensures a product to match any landscape
• Sensor hookup with bypass switch compatible with irritrols RainSensor Series
  Saves water by shutting off the system during rain
• Program stacking feature
  Prevents program overlap
• Electrical surge protection (on both input and output lines)
  Resists damage from lightning storms and power surges

Operating Specifications

• Station run times: 1-240 minutes (4 hours) in 1-minute increments
• Start times: 3 per program for up to 9 daily starts
