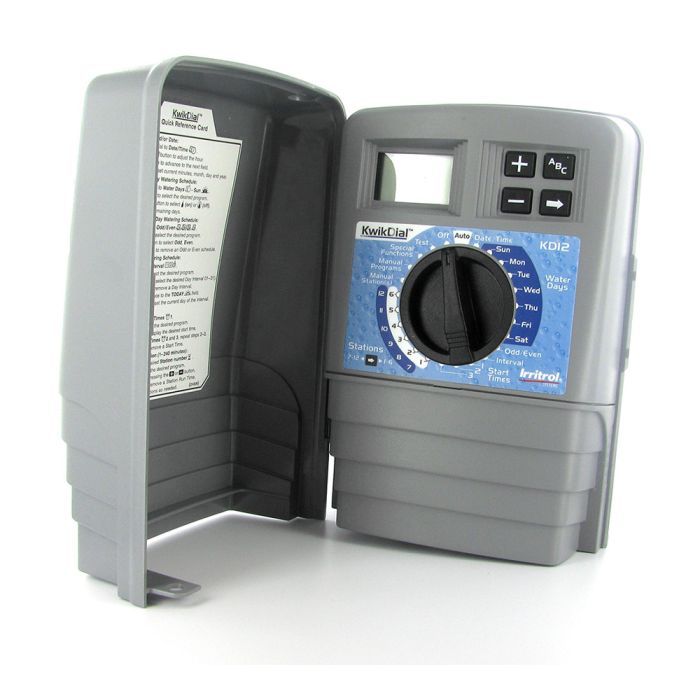

Irritrol KWIKDIAL 12 Station Indoor/Outdoor Controller | KD12-EXT

Features & Benefits

• Automatic, semi-automatic (manual program) and manual station(s) operation
• Programmable "Rain Off" up to seven days
• Dial and four push buttons for ease of programming
• Large LCD displays status of programs scheduled to run each day
• Multiple language capabilities (English, French, German, Italian and Spanish)
• Built-in memory maintains real time and programming information for a minimum of 24 hours in the absence of AC power (no battery required)
• "All stations" test program
• Water budgeting feature for each program (0-200% in 10% increments)
• Weather-resistant plastic case with internal transformer (outdoor model) and provision on door for a padlock
• Durable plastic case with plug-in transformer (indoor model)
• UL and CUL listed
• Three-year warranty

Specifications

• Station run times: 1-240 minutes (4 hours) in 1-minute increments
• Start times: 3 per program for up to 9 daily starts
• Watering day schedules: selectable per program for any days-of-the-week watering, interval watering (selectable in 1-day increments) from daily to once every 31 days, and odd/even-date watering (weekday exclusion option available in odd/even date and day-interval modes; i.e. water on all odd dates except Saturdays or water every three days except Tuesdays)
• Transformer input: 120 V ac, 60HZ (220/240 V ac, 50 Hz)
• Transformer output: 24 V ac, .830 amps
• Maximum output per station: 24 V ac, .4 amp
• Maximum total output: 24 V ac, .8 amp (including master valve)
• Capacity: One station valve plus a master valve (or 24 V ac pump start relay) on at a time
