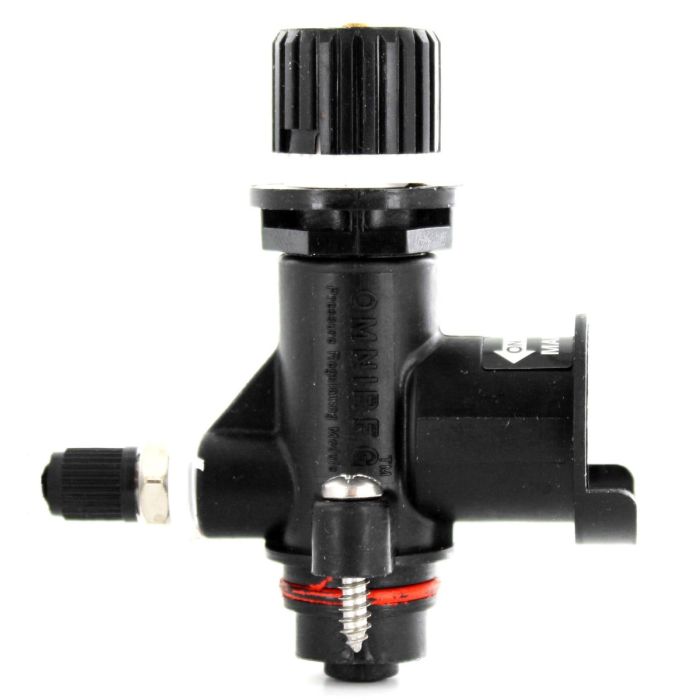

Irritrol OmniReg 5-30 PSI Pressure Regulator | OMR-30

Features & Benefits

• Maintains constant downstream pressure, regardless of widely varying inlet pressure For consistent operation of heads
• One model fits all heavy-duty commercial 100 Series (Century PLUS), 700 Series (UltraFlow?), 200B and 311A Series valves* Streamlines inventory requirements
• Requires only 1 GPM to operate Ideal for low-flow applications
• ?Drop in? installation is fast and easy, requiring tightening of only two capture screws For reduced labor time

Added Features

• Clearly marked dial settings permit precise control of downstream pressure
• Desired pressure may be set with water on or off
• Delivers an accuracy of ?3 psi
• Low-profile design permits use in applications with limited space
• Schrader valve test port is easily accessible for in-line use
• Manufactured of heavy-duty, corrosion-resistant glass-filled nylon
• Easily serviced internal module
• Stainless steel and brass hardware
• Vandal cap to avoid unauthorized use
• Five-year warranty

Operating Specifications

• Flow range: 1 to 300 GPM
• Inlet pressure range: Up to 200 psi
• Pressure regulation:
• OMR-30: 5 to 30 psi, OMR-100: 5 to 100 psi
• Inlet pressure to be 10 psi greater than outlet pressure
