Irritrol RAIN DIAL 12 Station Indoor/Outdoor Controller | RD1200-EXT-R

In stock
SKU
RD1200-EXT-R
Free Shipping on Orders over $149
Sales Price $282.95 Our Price $344.06 You save 18%

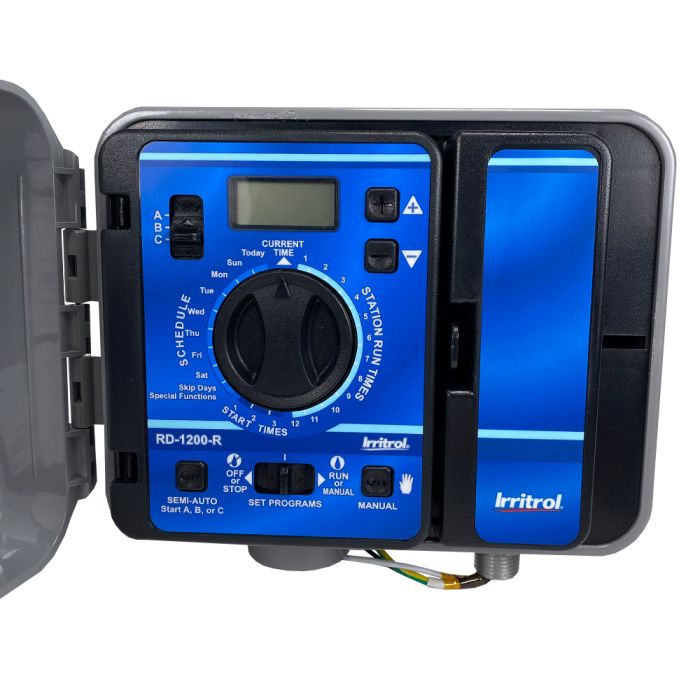

Irritrol RD1200-EXT-R Rain Dial 12 Station Outdoor Remote-Ready Timer

In addition to the numerous upgrades built into this popular, long-standing controller, the optional CLIMATE LOGIC? Wireless Weather Sensing System makes the Rain Dial-R a "smart" controller on the cutting edge of water management. When governed by Climate Logic, the Rain Dial-R will automatically water more on warm or hot days and less on cooler days. Applying the right amount of water to maintain a healthy landscape, the Rain Dial-R and weather-based Climate Logic Weather System seriously reduce overwatering and its expense.

  • Climate Logic ready Automatically reschedules Rain Dial-R watering based on the weather
  • Remote CONTROL ready Compatible with CRR (Contractor Residential Remote) remote series
  • Rainsensor? ready Sensor bypass switch and terminal for sensor hookup
  • Three independent programs Programming flexibility to meet the needs of a wide variety of plant material on the landscape site
  • Three water day choices - Any day of the week, skip days or odd/even dates - Skip days and odd/even dates have day exclusion option
  • Water Budgeting For quick changes to the watering durations of all stations on a program at one time or pre-set a change in water budget for each month.
  • 365-day calendar for Odd/Even date watering Meets the odd/even date watering mandates often used for landscape water reductions
  • Water well recovery (delay between stations) Option of pump circuit ON or OFF during
  • Master Valve/Pump Start circuit Assignable per station Stations requiring a booster pump can be supplied while other stations can run on street water pressure
  • Test All Stations program Allows a quick test of all stations from lowest to highest number
  • Clear/erase memory by program Saves time by quickly erasing only the program desired
  • Program stack or overlap option Allows three programs/stations on at once or restricts operations to no overlapping station runs

Operating Specifications

  • Station run times: 1-59 minutes in 1-minute increments or 1-5.9 hours in .1-hour (6 minute) increments
  • Start times: 3 per program per day for 9 starts total
  • Watering schedules per program - Any day of the week - Skip days from 1 to 31 days between irrigation days - Odd or even date watering

Manuals and Literature

Brochure Manual Quick Reference Guide
Brand:
Irritrol
Rain Sensor Compatible:
Yes
Sensor Compatible:
Rain
Power Source:
AC Powered
Outdoor:
Yes
Series:
RainDial
Warranty:
5 years
Start Times Per Program:
9
Expandability:
Fixed
Indoor:
Yes
Application:
Residential
Number of Programs:
3
Max Station Run Time (HRS):
6
Enclosure Type:
Indoor/Outdoor
Specifications (350.53 kB)
