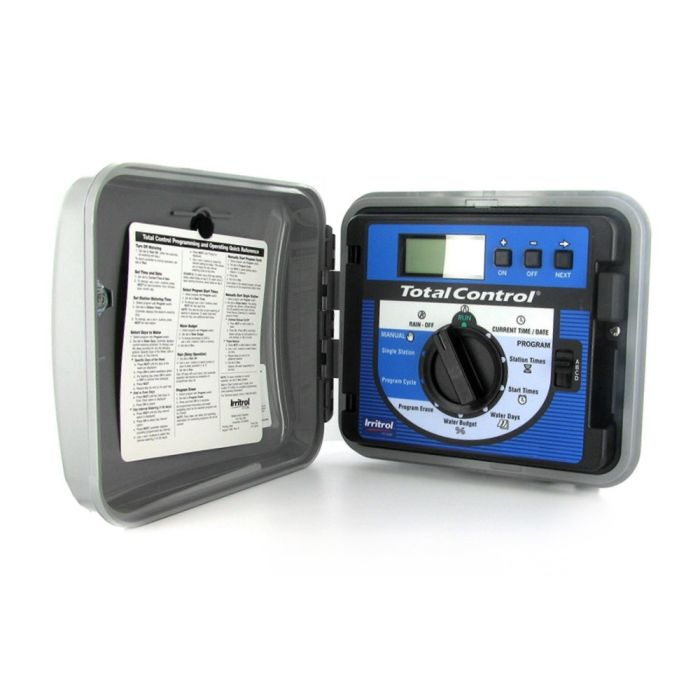

Irritrol TOTAL CONTROL 15 Station Indoor/Outdoor Controller | TC-15EX-R

SKU

TC-15EX-R

Overview

Irritrol TC-15EX-R 15 Station Outdoor Remote-Ready Sprinkler Timer

The Irritrol Total Control-R family of models is proof that advanced design controllers don't have to be complicated. Developed to meet a wide variety of watering requirements, the easy-to-program Total Control Series is available in models ranging from 6 to 48 stations. Programming flexibility is provided by four independent programs, 16 total start times and a 365-day calendar for odd/even day scheduling. And now, the Total Control-R has a weather-based option with Irritrol's new Climate Logic!

Features & Benefits

Climate Logic compatible Turn the Total Control into a weather-based controller using an on-site wireless weather sensor.
New R models are remote-ready For Irritrol's Contractor Residential Remote (CRR) series
Four independent programs offer concurrent operation capability For scheduling flexibility
Seven-day calendar, odd/even day or day-interval options from one to 30 days Provides the flexibility to meet water restrictions or plant watering requirements
Programmable master valve On/Off per program Provides the flexibility of running some programs with a booster pump and some without
Non-volatile memory Holds program during power failures for reliable operation
Flexible station run and start times Meet a broad range of watering requirements
6-, 9- and 12-station models have 12-station terminal boards; 15-, 18- and 24-station models have 24-station terminal boards Allows for station count increase simply by changing face panel module
Sensor hookup with bypass switch compatible with the Irritrol RainSensor Series Saves water by shutting off the system during rainfall
New 36 and 48-station models For irrigating larger landscape

Operating Specifications

Station run times: 1 minute to 10 hours in 1-minute increments
Start times: 16 total starts assignable to any program
Water budgeting: 10-200% in 10% increments

Electrical Specifications

Electronic circuit breaker: 1.25 amps minimum holding
Maximum output per station: 24 V ac, .5 amp
Maximum output to valves: 24 V ac, 1.25 amps (including master valve)
Battery backup: 9-volt alkaline battery (not included)
UL and CSA listed (6-, 9-, 12-, 15-, and 18-station models)
UL and CUL listed (24, 36, & 48-station models)
Outdoor - Transformer input: 120 V ac, 60 Hz (220/240V ac, 50 Hz) - Transformer output: 24 V ac, 1.67 amps
Indoor - Transformer input: 120 V ac, 60 Hz (220/240V ac, 50 Hz) - Transformer output: 24 V ac, 1.25 amps

Manuals and Literature

Brochure User Guide User Guide 24 Stations

Specs

More Information
Brand	Irritrol
Expandability	Fixed
Power Source	AC Powered
Number of Programs	4
Start Times Per Program	4
Max Station Run Time (HRS)	10
Indoor	Yes
Outdoor	Yes
Sensor Compatible	Rain, Freeze
Rain Sensor Compatible	Yes
Freeze Sensor Compatible	Yes
Application	Residential
Warranty	5 Years
Series	TotalControl
Zones	15
Enclosure Type	Indoor/Outdoor
