Irritrol TOTAL CONTROL 18 Station Indoor/Outdoor Controller | TC-18EX-R

Out of stock
SKU
TC-18EX-R
Free Shipping on Orders over $149
Sales Price $409.45 Our Price $511.81 You save 20%

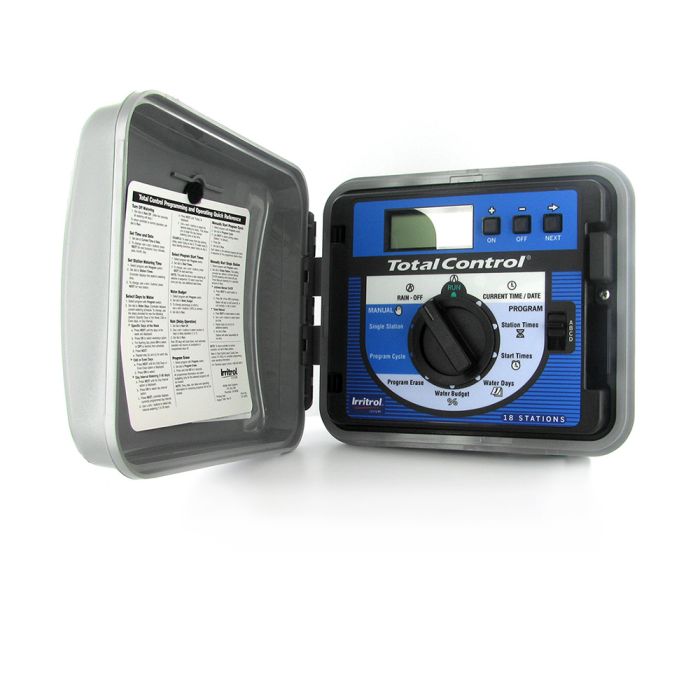

Irritrol TC-18EX-R 18 Station Outdoor Remote-Ready Sprinkler Timer

The Irritrol? Total Control?l-R family of models is proof that advanced design controllers don?t have to be complicated. Developed to meet a wide variety of watering requirements, the easy-to-program Total Control Series is available in models ranging from 6 to 48 stations. Programming flexibility is provided by four independent programs, 16 total start times and a 365-day calendar for odd/even day scheduling. And now, the Total Control-R has a weather-based option with Irritrol?s new Climate Logic?!

Features & Benefits

  • Climate Logic? compatible Turn the Total Control into a weather-based controller using an on-site wireless weather sensor.
  • New ?R? models are remote-ready For Irritrol?s Contractor Residential Remote (CRR) series
  • Four independent programs offer concurrent operation capability For scheduling flexibility
  • Seven-day calendar, odd/even day or day-interval options from one to 30 days Provides the flexibility to meet water restrictions or plant watering requirements
  • Programmable master valve On/Off per program Provides the flexibility of running some programs with a booster pump and some without
  • Non-volatile memory Holds program during power failures for reliable operation
  • Flexible station run and start times Meet a broad range of watering requirements
  • 6-, 9- and 12-station models have 12-station terminal boards; 15-, 18- and 24-station models have 24-station terminal boards Allows for station count increase simply by changing face panel module
  • Sensor hookup with bypass switch compatible with the Irritrol RainSensor? Series Saves water by shutting off the system during rainfall
  • New 36 and 48-station models For irrigating larger landscape

Operating Specifications

  • Station run times: 1 minute to 10 hours in 1-minute increments
  • Start times: 16 total starts assignable to any program
  • Water budgeting: 10-200% in 10% increments

Electrical Specifications

  • Electronic circuit breaker: 1.25 amps minimum holding
  • Maximum output per station: 24 V ac, .5 amp
  • Maximum output to valves: 24 V ac, 1.25 amps (including master valve)
  • Battery backup: 9-volt alkaline battery (not included)
  • UL and CSA listed (6-, 9-, 12-, 15-, and 18-station models)
  • UL and CUL listed (24, 36, & 48-station models)
  • Outdoor - Transformer input: 120 V ac, 60 Hz (220/240V ac, 50 Hz) - Transformer output: 24 V ac, 1.67 amps
  • Indoor - Transformer input: 120 V ac, 60 Hz (220/240V ac, 50 Hz) - Transformer output: 24 V ac, 1.25 amps

Manuals and Literature

Brochure User Guide User Guide 24 Stations
Brand:
Irritrol
Expandability:
Fixed
Power Source:
AC Powered
Number of Programs:
4
Start Times Per Program:
4
Max Station Run Time (HRS):
10
Indoor:
Yes
Outdoor:
Yes
Sensor Compatible:
Rain, Freeze
Rain Sensor Compatible:
Yes
Freeze Sensor Compatible:
Yes
Application:
Residential
Warranty:
5 years
Series:
TotalControl
Zones:
18
Enclosure Type:
Indoor/Outdoor
Specifications (189.35 kB)
