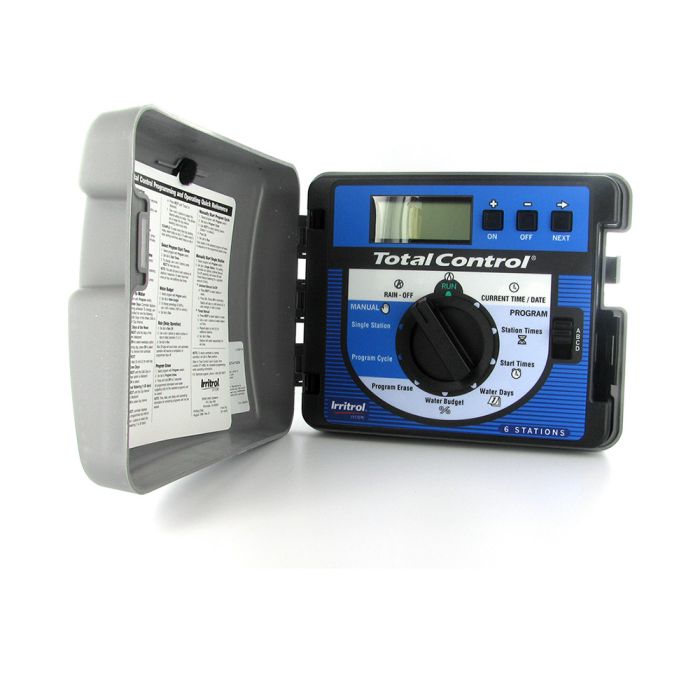

IRRITROL TOTAL CONTROL-R SERIES CONTROLLERS / TIMERS:
The Total Control?-R is proof that advanced
design controllers don?t have to be complicated.
Developed to meet
a wide variety of watering requirements, the
easy-to-program Total Control Series is available in models ranging from
6 to 24 stations.
Programming flexibility is provided by four independent
programs, 16
total start times and a 365-day calendar for odd/even
day scheduling.
A large, easy-to-read display and simple dial make
operation fast and easy. And, Total Control?s unique modular design
ensures convenient
on-site or ?armchair? programming, hassle-free panel
changeouts
and upgrades, and immediate access for simple servicing.
For added reliability, Total Control features electrical surge
protection on both
input and output lines, backed by a five-year warranty.
|
|
Features & Benefits
|
- New ?R? models are remote-ready
for Irritrol?s commercial maintenance remote (CMR-KIT)
- Four independent programs offer
concurrent operation capability
for scheduling flexibility
- Seven-day calendar, odd/even day
or day-interval options from one
to 30 days provides the flexibility to meet water restrictions or
plant watering requirements
- Program able master valve On/
Off per program
provides the flexibility of running some programs
with a booster pump and some without
- Non-volatile memory holds program during power failures for reliable operation
- Snap-out face panels allows easy removal of control module without
disturbing valve wiring for servicing and hassle-free
station upgrade (from 6 to 9 or 9 to 12 and from 15 to
18 or 18 to 24)
- Flexible station run and start times meet a broad range of watering requirements
- Sensor hookup with bypass
switch compatible with Irritrol?s
RainSensor? Series saves water by shutting off the system during rainfall
- User-friendly, 10-position programming dial and large, easy-to-read display
- Excluded-day option, when used with the odd/even date
option, allows selection of specific day(s) not to water
- 365-day calendar for odd/even day programming
- Start time stacking within each program
- Water budgeting
- Programmable ?Rain Off? up to seven days
- Automatic, semi-automatic, manual and timed-manual
operation
- Self-diagnostic circuit breaker identifies and bypasses an
electrical malfunction on a valve
- Electrical surge protection (on both input and
output lines) resists damage from lightning storms
and power outages
- Battery backup keeps accurate time for up to 90 day
during power failures
- Valve test terminal for easy valve identification
- Weather-resistant, plastic key-lock cabinet with an
internal transformer (outdoor models)
- Durable plastic cabinet with an external transformer
(indoor models)
- Wall mount
- UL and CSA listed (6-, 9-, 12-, 15-, 18-station models)
- UL and CUL listed (24-station model)
- Five-year warranty
|
|
Dimensions
|
- Outdoor: H: 8 1/2?, W: 10 1/2?, D: 5?
- Indoor: H: 7 1/2?, W: 9 1/2?, D: 4 1/4?
|
|
|
|
|
Specifications
|
- Station run times: 1 minute to 10 hours in
1-minute increments
- Start times: 16 total starts assignable to any program
- Watering schedule: 7-day calendar, odd/even date or
interval option of 1-30 days
- Water budgeting: 10-200% in 10% increments
- Electronic circuit breaker: 1.25 amps minimum holding
- Maximum output per station: 24 V ac, .5 amp
- Maximum output to valves: 24 V ac, 1.25 amps (including
master valve)
- Battery backup: 9-volt alkaline battery (not included)
- Outdoor
- Transformer input: 120 V ac, 60 Hz (220/240 V ac, 50 Hz)
- Transformer output: 24 V ac, 1.67 amps
- Indoor
- Transformer input: 120 V ac, 60 Hz (220/240 V ac, 50 Hz)
- Transformer output: 24 V ac, 1.25 amps
|
|
|
Irritrol Total Control-R Series Controller / Timer Models:
|
|
|
|
|
|
|
