K-Rain 24V Coil Pump Start Relay | 1522

In stock
SKU
1522
Free Shipping on Orders over $149
Sales Price $51.95 Our Price $90.86 You save 43%

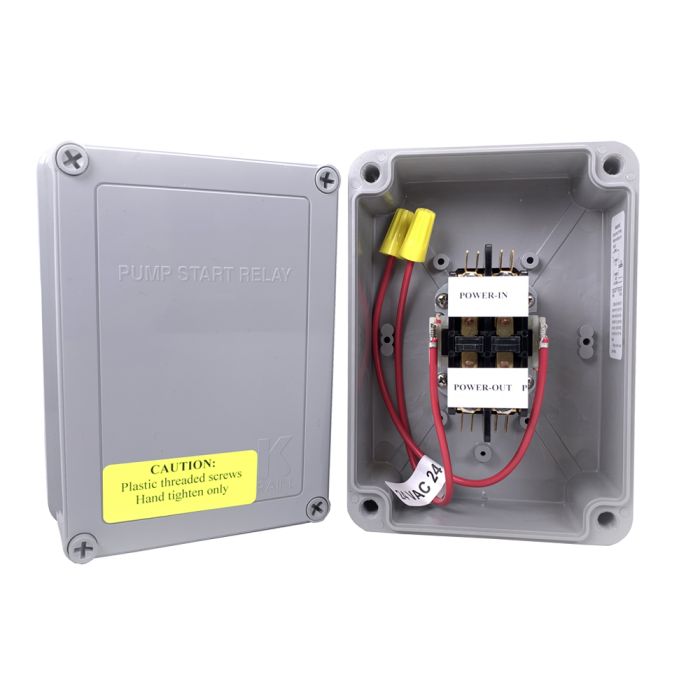

K-Rain 24V Coil Pump Start Relay

  • Horsepower: 3
  • Voltage: 110/220V
  • Type: Pump Start Relay

Features & Benefits

Pump relay enclosure shall be constructed with corrosion resistant, UV resistant and shockproof material. The enclosure will have a safety cover over the switch mechanism inside the access door. The enclosure shall have no less than 3 knockouts for easy access and wiring.

Pump relay enclosure shall be constructed with corrosion resistant, UV resistant and shockproof material. The enclosure will have a safety cover over the switch mechanism inside the access door. The enclosure shall have no less than 3 knockouts for easy access and wiring.

Pump start relays shall be U.L. rated available to operate 2 HP up to 7.5 HP pumps; coils shall be available in 110 VAC and 24 VAC. The pump start relay shall carry a two-year trade warranty against manufacturing defects

  • 2 Year Trade Warranty- Factory support up to two years after purchase.
  • Standard, Rain tight, Secure, Rustproof EnclosureProvides a safe and secure connection in an enclosure that will last a lifetime.
  • U.L. Rated Relay- Ensures that the relays are approved for its intended use.
  • Large Easy Access Enclosure- Provides easy accessibility during wiring.
  • Enclosure has 3 Recessed Knock-Outs- Provides for easy connections.
  • 110 VAC or 24 VAC Coils Available- Provides for a variety of applications up to 7.5 HP.

Product Details

Suitable for use on a circuit capable of delivering not more than 5000 RMS symmetrical amperes,
240 Volts maximum, when protected by fuses or beakers rated maximum 100 Amps.

Copper wire only, sized per 75 degrees C tables in accordance with NEC. Tightening torque of 22 lb-in for relay terminals. Hub should be connected to conduit before the hub is connected to the enclosure.

This enclosure must be installed so the orientation of the drain hole in the back cover is at the bottom of the enclosure. Metal conduit entering and exiting the enclosure must be secured to the enclosure using threaded grounding bushings, which are then connected to each other using a ground wire of sufficient size.

More Information
Brand K-Rain
Voltage 110/220V
Type Pump Start Relay
Warranty 2 Years
Horsepower 3
Extra Info (45.83 kB)
