K-Rain PRO-S Spray Head 4 in. | 78004

In stock
SKU
78004
Free Shipping on Orders over $149
Sales Price $1.15 Our Price $2.15 You save 47%

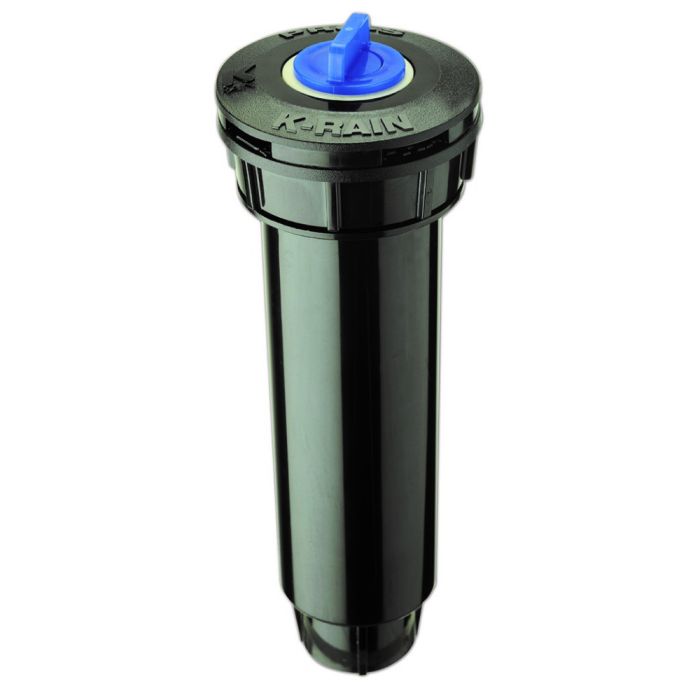

K-Rain 78004 4 in. Pro-S Sprinkler Spray Head (Nozzle Not Included)

The result of precision engineering and extensive field testing by contractors around the world, the PRO-S is designed to provide long life and outstanding performance. PRO-S sprays are rugged, contractorfriendly sprays. Available in 2", 3", 4", 6" and 12" pop-up heights, the PRO-S spray is designed to be compatible with all standard female-threaded nozzles.

PRO-S pop-up sprays are built with the contractor in mind. The co-molded wiper seal ensures proper operation time after time with minimal flow by.

Features and Benefits

  • Co-Molded Wiper Seal - Ensures a leak free, full pop-up operation even under low-pressure situations. Cartridge design allows for easy removal and cleaning. Treated with UV inhibitors for long life. Seal is microbe resistant to reduce degradation and stick-ups.
  • Accepts Female Threaded Nozzles (NOT included. Must be purchased separately).
  • Ratcheting Riser-Permits quick, easy alignment of spray pattern.
  • Heavy Duty Retraction Spring-Strongest spring in the industry for positive retraction in all soil conditions.
  • Side and Bottom Inlets-On 6" and 12" Models
  • Wide Selection of Sizes-Available in 2", 3", 4", 6" and 12" models
  • Pre-Installed Flush Cap
  • Optional In-stem Pressure Regulator available for 4", 6" and 12" models
  • Two Year Limited Warranty

CO-MOLDED WIPER SEAL

Ensures a leak free, full pop-up operation even under low-pressure situations. Unique cartridge design featuring microbe-resistant durable material prevents degradation and stick-ups.

Pre-installed flush cap. Male threaded body is compatible with all standard female nozzles.

Specifications

  • Pressure Rating: 20 - 70 PSI
  • Flow-by: 0 at 8 psi (0.6 bar) or greater;
  • 0.10 GPM otherwise
  • Overall Body Height:
  • 78002 - 4"
  • 78004 - 6"
  • 78006 - 9-3/8"
  • 78012 - 16"
  • Precipitation Rate: .4 - 4 in./hr
  • Inlet: 1/2" NPT Female Thread
KVF Nozzles

The K-Rain Pro-S line of sprays is distinguished by its robust construction, rugged body and cap, co-molded seal and heavy-duty retraction spring.

Brand:
K-Rain
Type:
Spray Head
Nozzle Connection:
Female Nozzles
Spray Body Height (in.):
6 in.
Inlet Size:
1/2 in.
Spray Head Spring:
Heavy Duty
Spray Head Wiper Seal:
Co-Molded
Non-Potable:
Potable
Pressure Regulation:
No Pressure Regulation
Application:
Residential and Commercial
Check Valve:
No Check Valve
Nozzle Installed:
No Nozzle (Flush Plug Only)
Pop-Up Height:
4 in.
Side Inlet:
No Side Inlet
Advance Features:
No Check Valve, No Pressure Regulation, Potable
Specifications (29.26 kB)
