K-Rain ProSport High Speed Rotor 4 in. | 14053

In stock
SKU
14053
Free Shipping on Orders over $149
Sales Price $29.95 Our Price $44.99 You save 33%
Case of 12
$29.35 / each

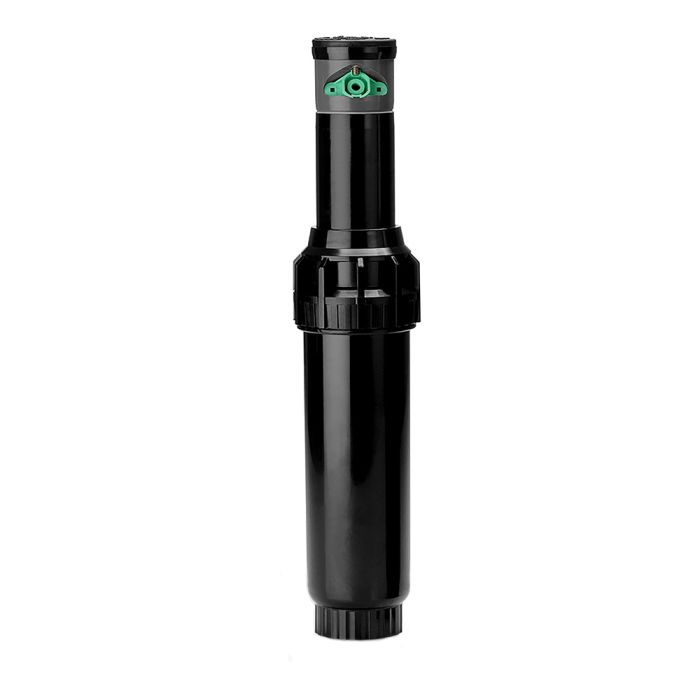

K-Rain ProSport High Speed Rotor 4 in.

  • Pop-Up Height: 4 in.
  • Pressure Range (PSI): 40-90
  • Spray Pattern: Part Circle Adjustable (40 - 360)

Features & Benefits

The PRO SPORT is K-Rain's next generation of professional rotors, designed specifically for sports turf applications with head spacing from 40' to 65'. The PRO SPORT comes standard with a unique triple nozzle.

The triple nozzle configuration consists of a primary nozzle for long distance and two secondary nozzles for mid-range and short distance coverage. This nozzle design provides even water distribution from 45' to 77'. This model of PRO SPORT is the high-speed version, ideal for quick wet downs and dust control.

The ProSport provides both part and full circle adjustment from 40° to 360°. Coverage pattern is indicated by degree graduations and an arrow located on top of the sprinkler, which rotates to correspond with arc selected. True full circle operation by continuous rotation is provided by alignment of the indication arrow with the "360°" position locator marked on the top cover.

The rotor has a friction-clutch mechanism to allow for 360° + forward or reverse movement of nozzle turret without damage to the internal gear components. The ProSport incorporates an "arc memory clutch" feature to allow the original arc pattern to be automatically resumed following disturbance of nozzle turret setting. The ProSport has a minimum of 4-inch (10 cm) pop-up stroke.

  • Revolutionary Patented Easy Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.
  • Triple Nozzle Configuration – Ensures even distribution of water.
  • 2N1 Adjustable or Continuous Rotation – Provides a full range of adjustment from 40° to a continuous full circle.
  • Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment.
  • Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past stop.
  • Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 20 year history.
  • Heavy Duty Rubber Cover and Mud Guard – Protects against physical injury and reduces liability, allows sprinkler to be installed below grade.
  • Factory Installed Check Valve – Prevents low head drainage

Product Details

  • Inlet: 1" Threaded NPT Domestic 1" BSP: International
  • Arc Adjustment Range: 40° to Continuous 360°
  • Pressure Rating: 40 - 90 PSI
  • Precipitation Rate: .3 to .78 in./hr. (Depending on Spacing & Nozzle Used)
  • Overall Height (Popped Down): 9 1/2"
  • Recommended Spacing: 40' to 65'
  • Radius: 45' to 77'
  • Nozzle Trajectory: 26°
  • Riser Height: 4"
More Information
Brand K-Rain
Type Rotor
Application Commercial
Inlet Size 1
Body Height 9-1/2
Pressure Range (PSI) 40-90
Warranty 5 Years
Pop-Up Height 4 in.
Check Valve Check Valve
Riser Material Plastic
Spray Pattern Part Circle Adjustable (40 - 360)
Advance Features Check Valve
Brochure (2.69 MB)
Manual (174.72 kB)
Specifications (49.04 kB)
