King Innovation Digital Multimeter Thin TRMS Bluetooth Autoranging
- Meter type: Auto
- Display Count: 1999
- Requires 2 AA batteries (included)
Features & Benefits

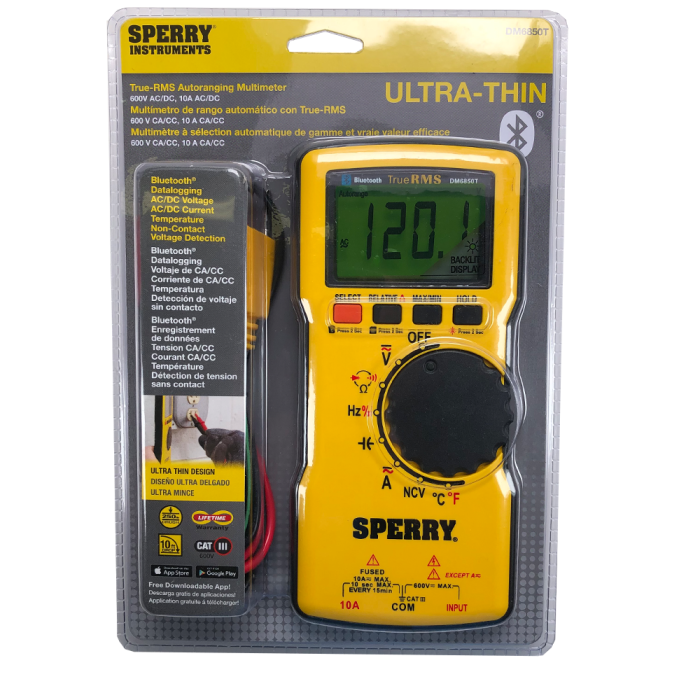

The Sperry Instruments DM6850T Ultra-Thin Digital Multimeter with Bluetooth offers a durable and ergonomic impact-resistant design, manufactured to the latest industry standards, to exceed the expectations of the professional electrician. At less than 3/4in. thick, it's the thinnest full-sized multimeter yet.
Capable of testing 600V AC/DC, this unit also measures AC/DC amps (10A), resistance (200, 2k, 20k, 200k, 2M, 20M Ohm), frequency (40Hz, 400Hz, 4kHz, 40kHz, 400kHz, 4MHz), capacitance (40nF, 400nF, 4uF, 40uF, 400, 1000uF), temperature (-20 C to 1000 C) and continuity (audible). It also allows you to view, monitor, capture pictures and data, then log the date/stamp readings to your mobile device and export results via Bluetooth.
- Thin design less than 3/4in. thick
- Durable, ergonomic impact-resistant design
- Data logging and Bluetooth connectivity to smart device
- Measures AC/DC voltage, AC current, resistance, continuity, capacitance, duty cycle, temperature, diode and non-contact voltage
- Improved audible and visual indicators
- Backlit display
- Auto ranging
- Test lead input icons prompt user with correct lead placement o ensure proper test results
- Data hold function
- Max/min function
- Auto-off function to save battery life
- Low battery indicator to help eliminate incorrect readings due to low battery
- 10ft. drop rating
- 250-lb. crush rating
- CAT III (600V), cETLus and CE rated
- Limited lifetime warranty
- Requires 2 AA batteries (included)
Product Details
- Meter type: Auto
- Display Count: 1999
- Sampling Rate: About 2 to 3 times/sec
- Battery: Requires 2 AAA batteries
- Input impedance: 10 Meg Ohm
- AC Volt Ranges: 2V, 20V, 200V, 600V, best accuracy (1.0%+5)
- DC Volt Ranges: 200mV, 2V, 20V, 200V and 600V, best accuracy (0.8%+5)
- AC Amps: 2A, 10A, best accuracy (1.5%+5)
- DC Amps: 2A, 10A, best accuracy (1.2%+5)
- Resistance Ranges: 200ohm, 2kohm, 20kohm, 200kohm, 2M ohm
- and 20M ohm, best accuracy (1.0%+5)
- Over Range Indication: Displayed value > 1999 or the input
- measurement range, displays OL
- Polarity Indication: is displayed for negative polarity
- Overload Protection: 10A/600V Fast fuse
- Agency Approvals: ETL, CE (IEC/EN61010:, CAT III 600V, Pollution Degree 2)
- Operating Temperature: 32F 104F (0C 40C)
- Relative Humidity: < 85%
- Storage Temperature: -4F 140F (-20 - 60C)
- IP Degree: IP20
- Dimension: 176mm x 81mm x 17mm
- Weight: Around 180g (without batteries)
- Altitude: Maximum 2000m
- Warranty Info: Limited lifetime warranty
