King Innovation DryConn Xtreme Waterproof Connector (2 ct.) | 20260

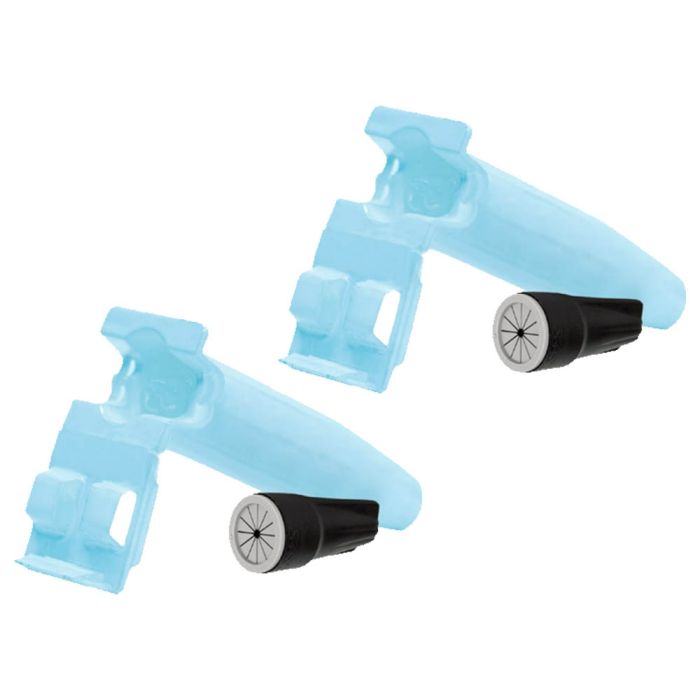

King Innovation DryConn Xtreme Waterproof Connector (2 ct.)

• Max Voltage: 600V max building wire
• Tubing Size: 3-11/16 in. x 1-1/2 in. x 1-3/16 in.
• Wire Connector Size: 1 19/64" x 43/64"

Features & Benefits

• UL Listed and 600V Rated
• Waterproof and corrosion proof
• Patented snap fit lid provides strain relief
• UV and impact resistant
• Excellent for above ground and direct bury applications
• Pre-filled with silicone that never hardens
• Two part system includes DryConn Black/Gray Waterproof Connector and silicone filled tube
• Perfect for long term submersible applications

Product Details

• Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
• Connector Size: 3 11/16" x 1 1/2" x 1 3/16"
• Wire Type: Copper/Copper
• Wire Range: Min #22/Max #8
• Temperature Rating: -105°C (221° F)
• Silicone Sealant Temperature: -45°F to 400°F
• Submersion Rating: IPX8 (6ft) (Contact Manufacturer for Duration)
• Tube Construction: Sunlight and Impact Resistant Blended Polypropylene
• UL Designation: GT3

Installation Instructions:

Note: (IMPORTANT) Turn off power before installing or removing connector. Product to be used in accordance with local and national codes. Do not reuse.

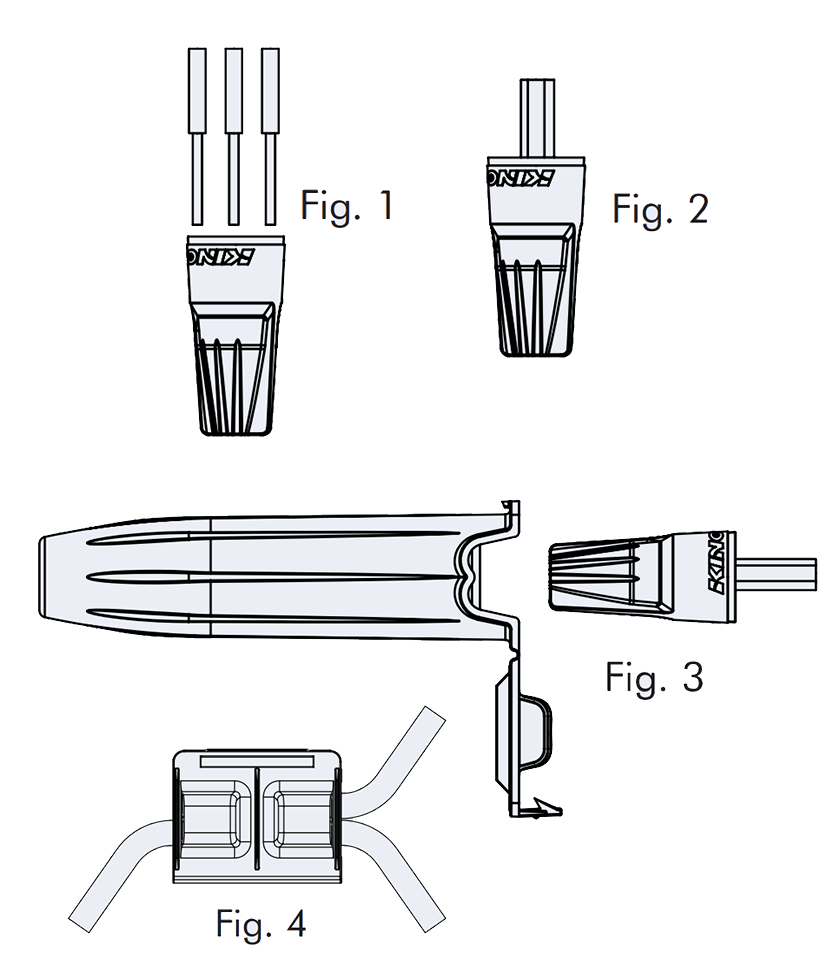

1. Strip wires 5/8” (15.9 mm)
2. Align frayed strands or conductors. Fig. 1
3. Pre-twisting unnecessary. Place stripped wires together with ends of insulation even. Note: Twist and lead stranded wires slightly.
4. Twist connector onto wires pushing firmly until hand-tight. Do not over torque. Fig 2
5. Wipe sealant in and around conductors and connector opening while tightening.
6. Insert the splice to the bottom of the sealant filled tube. Fig. 3
7. Position wires into wire channels
8. Wipe any sealant around opening and conductors.
9. Close lid ensuring latch is secured. Fig. 4
