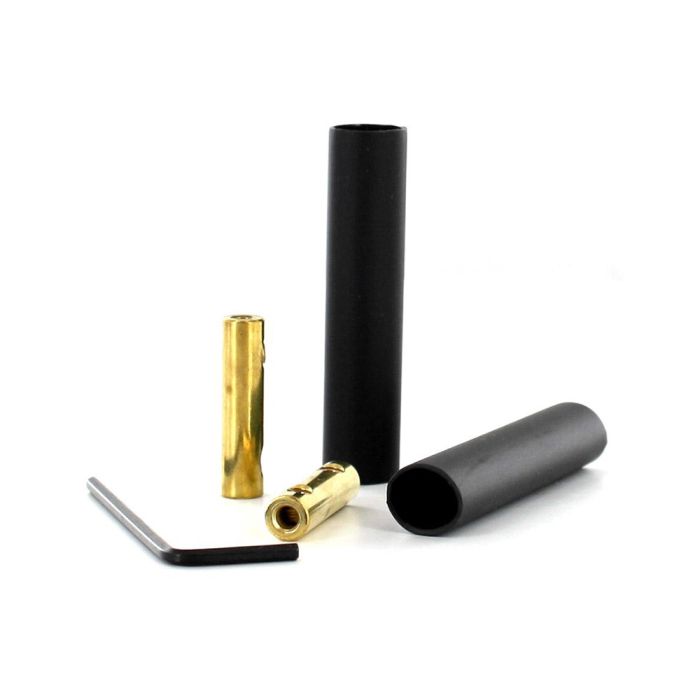

King Innovation Landscape Lighting Small Lug Connectors (2 ct.) | 90325-2CT

1. Important! Shut off the power before installing or removing the connector.
2. Prior to stripping wire, slide heat shrink onto cable.
3. Strip wires 0.5 in.
4. Align any frayed strands or conductors.
5. Tighten set screw with Allen wrench. Do not over torque.
6. Position heat shrink on lug and heat evenly with heat gun or hand held torch until sealed.

One (1) year from the date of purchase

• Length: 1 in.
• Width: 0.25 in.
• Wire Type: Copper
• Wire Range: #18 - #12 AWG
• Silicone Sealant Temperature: -45°F to 400°F
• UL Listed BLCS
