King Innovation Large Wire Connectors (50 ct.) | 20136-50CT

In stock
SKU
20136-50CT
Free Shipping on Orders over $149
Sales Price $36.75 Our Price $65.92 You save 44%

King Innovation

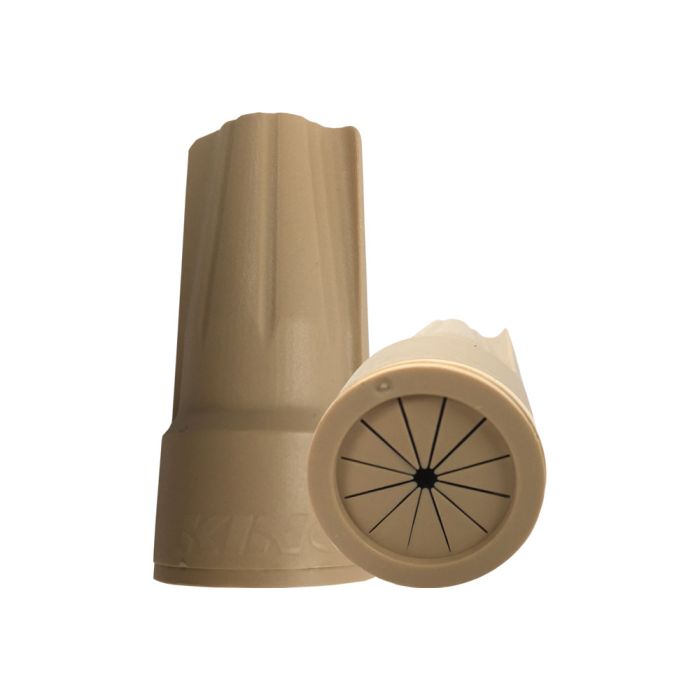

Large Wire Connectors

You can now use this connector without a junction box, optimal for lighting, irrigation or low voltage underground wiring. This connector is already pre-filled with a petroleum-based sealant making for a better connection.

Features Benefits

  • 30V/10 AMPS Max
  • No junction box required
  • Filled with petroleum based sealant
  • Suitable for all low voltage applications
  • For use in lighting, irrigation, and low voltage underground wiring

Product Specifications & Measurements

  • Max. Voltage: 30V/10 AMP
  • Connector Size: 13/16" x 1 9/16"
  • Wire Type: Copper/Copper
  • Wire Range: Min #22/Max #6
  • Temperature Rating: 75°C (167°F)
  • Petroleum Sealant: -29°F to 250°F

Measurements

  • A - 1.563"
  • B - 0.813"
  • C - 0.656"
  • D - 0.656"

Installation Instructions

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

  1. Strip wires 5/8”.
  2. Align frayed strands or conductors.
  3. No pre-twisting needed. Hold stripped wires together with ends even. Note: Twist and lead stranded wires slightly.
  4. Push wires firmly into connector when starting.
  5. Twist connector onto wires pushing firmly until tight. Do not over torque. Do not reuse.
Brand:
King Innovation
Wire Range:
Min #22/Max #6
Temperature Rating:
167°F
Temperature Range:
-29 - 250°F
Type:
Low Voltage Wire Connectors
Max Voltage:
30V
