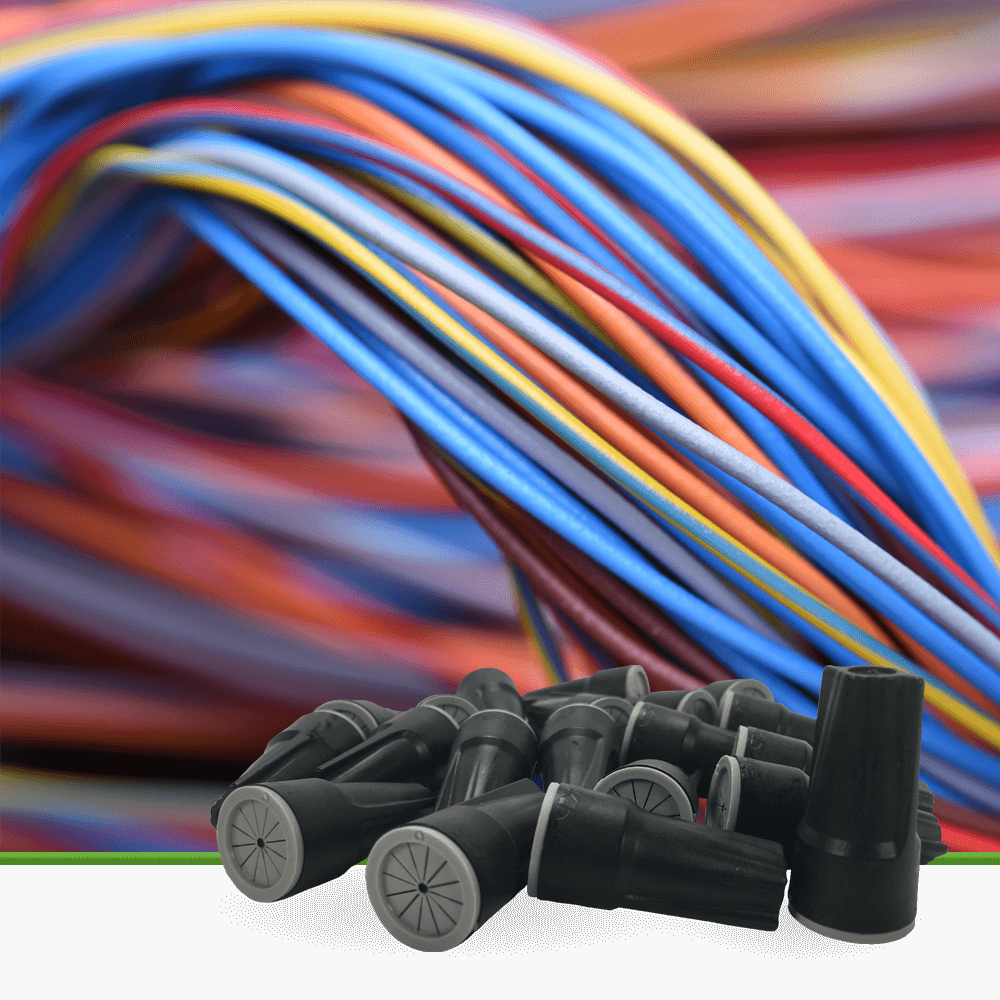

King Innovation Waterproof Medium Wire Connectors (100 ct.) | 61241

SKU
61241
Free Shipping on Orders over $149
Sales Price $64.88 Our Price $140.95 You save 54%

King Innovation Waterproof
Medium Wire Connectors

From dry to wet, above or below ground, this connector is optimal for direct bury applications operating at 30V or less. Impact-resistant and easy to install, this connector saves you time and money.

Features Benefits

  • UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
  • For use in Direct Bury applications when operating at 30V or less
  • Impact resistant
  • #1 in the industry
  • Waterproof and corrosion proof
  • One-step® installation saves time and money
  • No pre-twisting required
  • Pre-filled with dielectric silicone sealant that never hardens

Product Specifications & Measurements

  • Max. Voltage: 600V max. building wire (1000V max. signs or luminaires)
  • Connector Size: 1 19/64" x 43/64"
  • Wire Type: Copper/Copper
  • Wire Range: Min #22/Max #8
  • Temperature Rating: 105°C (221°F)
  • Silicone Sealant: -45°F to 400°F
  • UL Designation: MWP

Measurements

  • A - 1.30"
  • B - 0.67"
  • C - 0.51"

Installation Instructions

IMPORTANT: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes.

  1. Strip wires 5/8" (15.9mm).
  2. Align any frayed strands or conductors.
  3. Pre-twisting unnecessary. Place stripped wires together with ends of insulation even.
  4. Twist connector onto wires pushing firmly until hand-tight. Do not over torque.
  5. Wipe sealant in and around conductors and connector opening while tightening. Do not reuse.
More Information
Brand King Innovation
Type Waterproof Connectors
Max Voltage 600V Building, 1000V Signs or Luminaries
Temperature Range -45 - 400°F
Temperature Rating 221°F
Wire Range Min #22/Max #8
Warranty 1 Year
Specification (171.28 kB)
