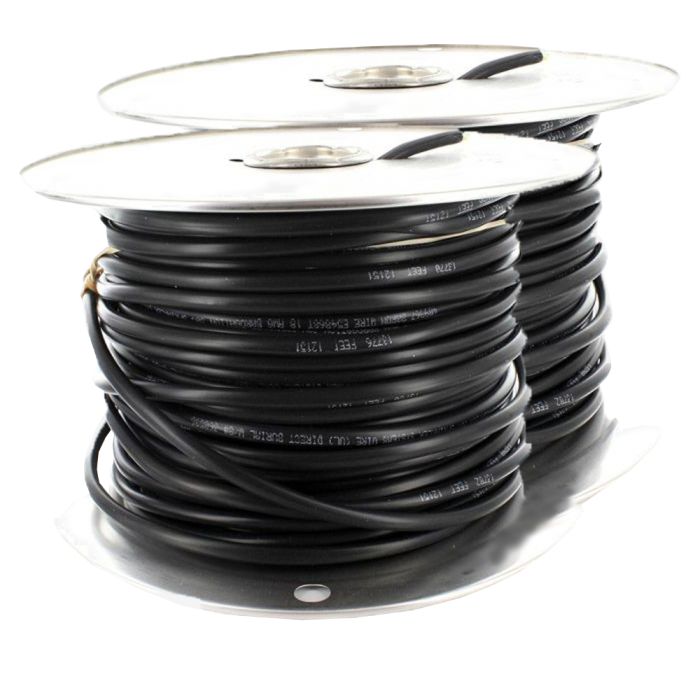

Suitable for outdoor environment, this 18 gauge, 7 conductors sprinkler wire is optimal for landscape light. With a coverage of 250 feet, this wire is great for residential or commercial use.
Materials
Construction
Standards & References
Temperature Rating
| WEIGHTS, MEASUREMENTS, AND PACKAGING | |||
|---|---|---|---|
| SIZE (AWG) AND CONDUCTORS NUMBER OF CONDUCTORS | INSULATION NOMINAL THICKNESS (INCH) | NOMINAL OVERALL DIAMETER (INCH) | APPROX. NET WEIGHT (LBS/1000 FT) |
| 18/2 | 0.015 | 0.190 | 18 |
| 18/3 | 0.015 | 0.202 | 25 |
| 18/4 | 0.015 | 0.220 | 32 |
| 18/5 | 0.015 | 0.240 | 39 |
| 18/6 | 0.015 | 0.261 | 46 |
| 18/7 | 0.015 | 0.261 | 53 |
| 18/8 | 0.015 | 0.282 | 60 |
| 18/9 | 0.015 | 0.303 | 67 |
| 18/10 | 0.015 | 0.331 | 75 |
| 18/12 | 0.015 | 0.342 | 88 |
| 18/13 | 0.015 | 0.360 | 95 |
Articles
Videos
| Brand | Wire |
|---|---|
| Voltage | 30V |
| Warranty | 1 Year |
| Wire Gauge | 18 |
