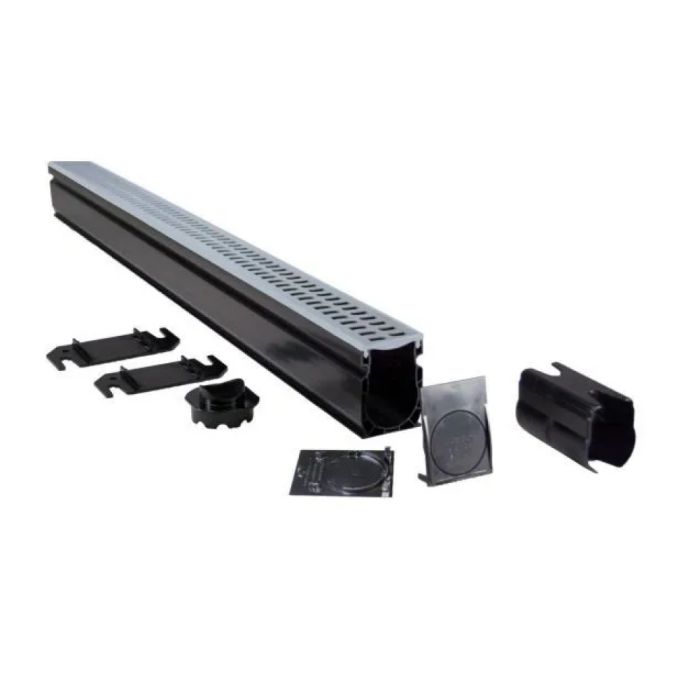

NDS 6 Ft. Slim Channel Kit with Gray Grates and Accessories | NDS-9206GKIT

Used for hardscape surface drainage, the Slim Channel Drain from NDS captures light flows of runoff from pool areas, patios, and walkways to prevent mildew, concrete erosion, and costly property damage. Both the slim channel and grates are treated with UV inhibitors to prevent no fading or cracking, ensuring a long lifespan for your purchase.

• Flow Rate: 21 GPM
• Slim Channel Material: PVC
• Grates Material: Polypropylene
• Slim Channel Drains are connected using couplings; bottom outlet and end caps with knock-out outlets connect to ½ in. Schedule 40 Pipe

Channel drains collect and convey water to drainpipes, which carry the water downstream to discharge with a pop-up emitter or to percolate into the ground with a dry well or infiltration trench.

Limited One (1) Year Warranty

• Height: 3 in.
• Length: 6 ft. (can be cut to size)
• Width: 2.25 in.
• Can be solvent-welded with PVC glue for a watertight connection
• Includes preassembled drain and grates, coupling, 2 end caps/outlets, 1 bottom outlet, and anchor clips
